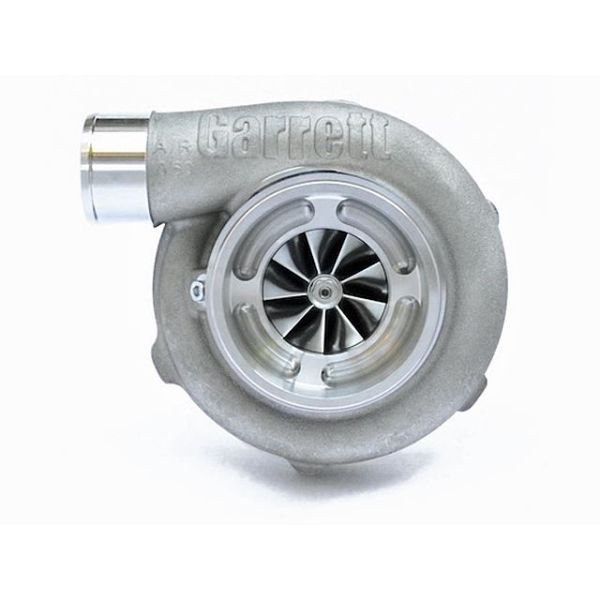

Garrett GTX3076R GEN II Dual Ball Bearing Turbo - Reverse Rotation
TAGS: Garrett GTX Gen II Reverse Rotation Turbo Series, GTX3076R Gen 2, Mirror Image, 750HP, 844621-5004S, 856802-5004S, 856802-5005S, 856802-5006S
Found it for less but value our service?
Details
Garrett GTX3076R GEN II Dual Ball Bearing Turbo - Reverse Rotation
PRODUCT DESCRIPTION:
Garrett GEN II (Gen 2) Reverse Rotation GTX3076R dual ball bearing turbocharger (turbine housing sold separately). Advanced GEN2 billet compressor wheel capable of 750HP!
The Garrett reverse rotation series spins counterclockwise and offers new housing layout options for applications where a standard turbocharger (spins clockwise) does not provide sufficient clearance. Upgrading an OEM counterclockwise spinning turbo has never been easier with the Garrett GEN II (Gen 2) GTX Reverse Rotation series! Normally In Stock, Shipping Daily!
APPLICABLE GARRETT PART NUMBERS:
•844621-5004S, 856802-5004S, 856802-5005S, 856802-5006S
PRODUCT FEATURES:
•Advanced aerodynamics & ultra high flow Garrett GTX GEN II (Gen 2) compressor wheel
•Forged billet aluminum compressor wheel
•Dual ball bearing CHRA rotating assembly
•Reverse Rotation CHRA rotating assembly (spins counterclockwise)
•Potential upgrade turbo solution when standard rotation turbo exceeds space limitations
•Built in turbo shaft speed port. Just add sensor and go!
PRODUCT SPECIFICATIONS:
•Compressor Wheel Inducer: 58mm
•Compressor Wheel Exducer: 76mm
•Compressor Wheel Trim: 58
•Compressor Housing A/R: 0.60
•Turbine Wheel Inducer: 60mm
•Turbine Wheel Exducer: 55mm
• Turbine Wheel Trim: 84
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
More Information
| Part Number | 844621-5004S |
|---|---|
| Brand | Garrett |
| Type of Part | GTX Gen II Series |
| Engine Fitment | 1.8L-3.0L (400HP-750HP) |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 22.000000 |
