Details

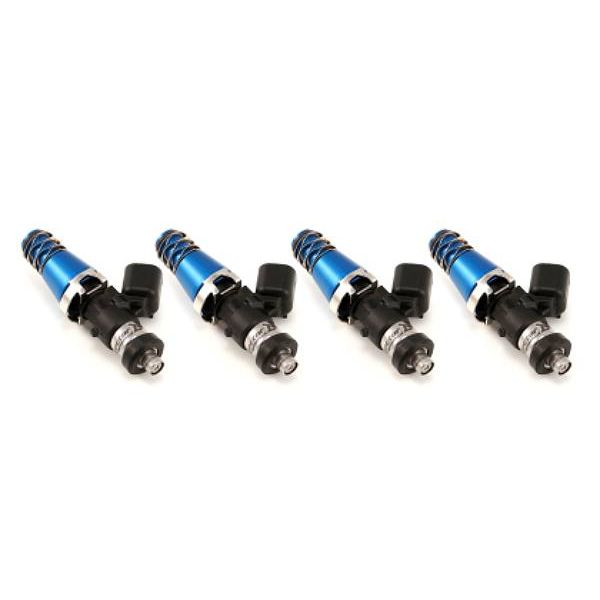

2003-2006 EVO8/9 ID1750-XDS Injector Dynamics Injector Set - 1750.60.11.D.4
The ID1700x Injector for the 2003-2005 EVO 8 and 2006 EVO 9 is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels.A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.
2003-2006 EVO VIII / EVO IX ID1750 Injector Set:
Nominal Flow Rate – 1728cc/min @ 3.0 Bar (43.5 psi), Using E10 Emissions Certification Fuel at 49 Degrees C (120F)
Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
Fuel Compatibility – Compatible with Methanol/Ethanol/MTBE/Nitromethane/All Known Hydrocarbon Fuels.
Electrical Connector – USCAR
The ID1750-XDS was designed to be an all fuel compatible injector, capable of very high flow rates. As such, it will most often be used to deliver E85 to boosted engines, or occasionally, gasoline in extreme high horsepower applications. Neither of these applications requires extended linearity at low flow rates, and so this was given a proportionately lower priority during the design process.
The ID1750 will deliver flawless stoichiometric idle and cruise mixtures on E85, but like the ID2000, should not be expected to do so on gasoline.
If you need flawless drivability on gasoline, the ID1300x will provide this, and is capable of approximately 150hp per injector on E85.
More Information
| Part Number | 1750.60.11.D.4, 1700.60.11.D.4 |
|---|---|
| Part Brand | Injector Dynamics |
| Type of Part | Fuel Injectors |
| Engine Fitment | 4G63T |
| Length | 8 |
| Width | 5 |
| Height | 5 |
| Weight | 2.000000 |
