2003-2008 Matrix Tein Street Basis Coilover Kit
Found it for less but value our service?
Details

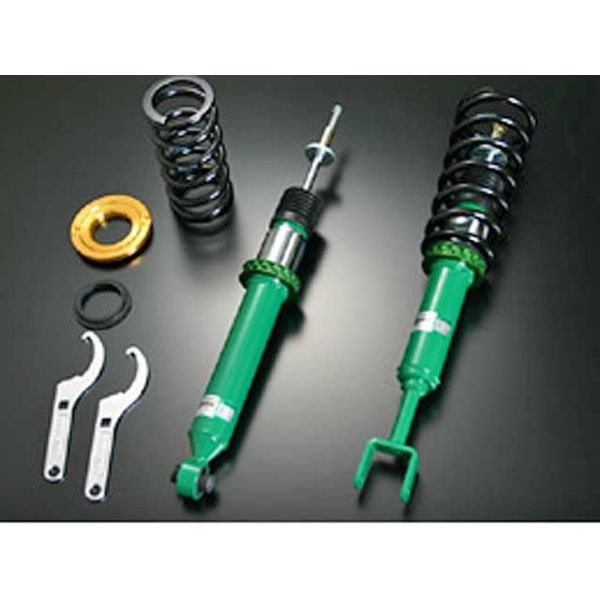

Tein Street Basis Coilovers for 2003-2008 Toyota Matrix - GSL06-8USS2
The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.
Front Specifications:
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -60
- Recommended Ride Height (inch): -2.4
- Ride Height Adjustable Range:
- Max Low (mm): -95
- Max Low (inch): -3.7
- Max High (mm): -42
- Max High (inch): -1.7
- Recommended Low (mm): -70
- Recommended Low (inch): -2.8
- Recommended High (mm): -50
- Recommended High (inch): -2
- Spring
- Rate (kgf/mm): 5
- Rate (lbs/in): 280
- SP PART#JC050-1F200-3
- Free Length (mm): 200
Rear Specifications:
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -55
- Recommended Ride Height (inch): -2.2
- Ride Height Adjustable Range:
- Max Low (mm): -97
- Max Low (inch): -3.8
- Max High (mm): -33
- Max High (inch): -1.3
- Recommended Low (mm): -65
- Recommended Low (inch): -2.6
- Recommended High (mm): -45
- Recommended High (inch): -1.8
- Spring:
- Rate (kgf/mm): 3
- Rate (lbs/in): 168
- SP PART#S8L07-13030
- Free Length (mm): 235
Fitment:
- Year: 2003-2008
- Make: Toyota
- Model: Matrix
- Drivetrain: FF
- Chassis: ZZE133L
- Motor Size: 1800
- Vehicle Region: USA
Notes:
- 5Dr/4Cyl/6-Speed, Do Not Fit Awd Or Xrs Model
Features:
- Steel Construction
- Twin Tube internal construction
- Thread Type Ride Height Adjustment
- Utilizes OEM Mounts
- 16 way adjustable dampers, compression and rebound combined
- High Durability and Reliability
- Anodized brackets with Teflon coated shock body for heavy duty rust prevention
More Information
| Part Number | GSL06-8USS2 |
|---|---|
| Brand | Tein |
| Type of Part | Suspension |
| Engine Fitment | 1.8L |
| Length | 35 |
| Width | 12 |
| Height | 12 |
| Weight | 40.000000 |
