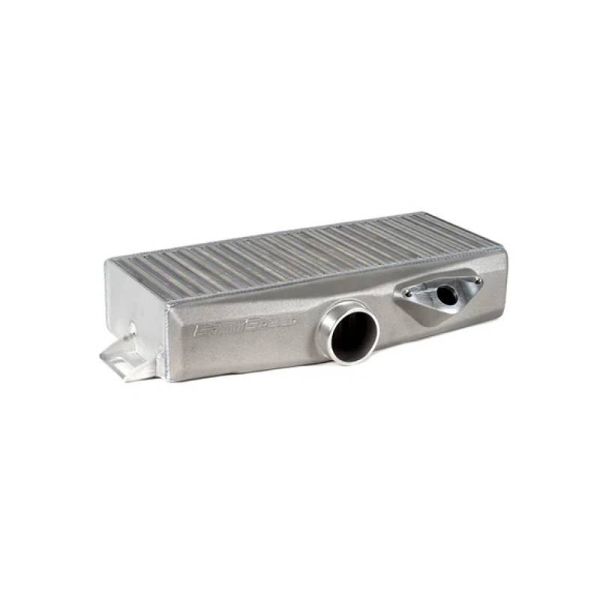

2004-2021 Subaru STI Top Mount Intercooler (TMIC) | GrimmSpeed
NOW 50 State Street Legal
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details
2004-2021 Subaru STi, EJ25, 2002-2007 Subaru WRX, EJ20, Top Mount Intercooler, TMIC, GrimmSpeed, 090001, 090024
So, you probably already know that you want an intercooler with maximum cooling and minimum restriction, but when it comes to selecting the right one for the job, we think it’s important to understand why. As air is pressurized by your turbo, it heats up, not because of the heat of the turbocharger, but because of it being compressed, the atoms in the air are forced closer together and as a result, move faster and have more energy. That energy manifests itself as heat. The more heat we can remove from the system, the denser the air becomes and that’s what helps eliminate pre-detonation, or ‘knock’, allowing for increased output from your system. Your OEM TMIC does just fine at stock boost under normal use, but as soon as you start putting some real heat into it with higher boost or harder use, it heat-soaks beyond recovery.
QUICK SPECS:
- Smooth End Tank Internal Contours - Designed for maximum flow
- Machined Throttle Body Connection - Tight, leak and trouble-free seal
- Machined Flange Faces and Internal Bores - Maximum pressure-tightness and unrestricted flow
- Permanent Mold End Tank Tooling and Casting - Allows much tighter tolerances and higher strength
- Stainless Steel Threaded Inserts - Prevent cross-threading or damaged threads
- High-Density, High-Flow Core - Optimizes heat transfer and minimizes flow restriction for turbo Subarus
- Cleaned, Inspected and Sealed Prior to Shipping - Prevent Engine Damage Due To Foreign Matter
- Includes GrimmSpeed Inlet and BPV Gaskets - The best in the industry!
- 50 State Street Legal - CARB EO #D-896-4 and EO #D-896-2
INCLUDED:
- GrimmSpeed Top Mount Intercooler
- GrimmSpeed Bypass Valve Gasket
- GrimmSpeed STI TMIC Y-Pipe Gaskets (Pair)
- 36-inch Long 1/2" PCV Hose
- 1/2" Tee Fitting
- 1/2" Hose Connector
- 4x Black M8x1.25-18mm Y-Pipe Bolts
- 2x M8x1.25-25mm Bypass Valve Bolts
- GrimmSpeed Stencil
FITMENTS:
- 2002-07 Subaru Impreza WRX
- 2004-21 Subaru Impreza STI
- 2004-08 Subaru Forester XT
More Information
| Part Number | 090001 |
|---|---|
| Part Brand | GrimmSpeed |
| Type of Part | Intercoolers |
| Engine Fitment | EJ20, EJ25 |
| Length | 32 |
| Width | 20 |
| Height | 11 |
| Weight | 25.000000 |
