Details

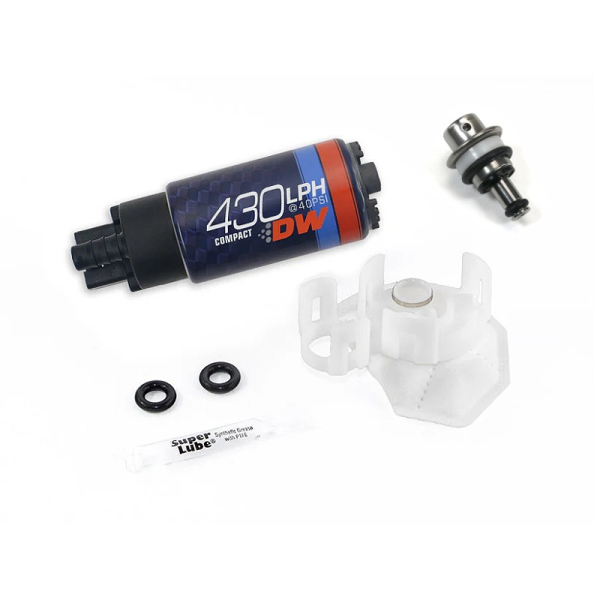

2007-2021 Toyota Tundra 5.7L, DW430C, 430LPH In Tank Fuel Pump, 4.5bar In Tank Fuel Pressure Regulator (FPR) Package by Deatschwerks, 9-437-1026, 6-45-M51
The 430lph DW430c offers the highest flow available in a compact fitment pump. The compact fitment allows drop-in fitment into the 2007-2021 Toyota Tundra 5.7L Non FFV Trucks. Quiet operation and pulse width modulation compatibility are delivered via the turbine impeller and computer balanced armature. E85 compatibility is built in via the carbon commutators and a fully encapsulated armature. All DW fuel pumps are backed by a 3-yr no fault warranty.
Specifications
Weight: 10.2 oz (290grams)
External Materials: Electroplated Steel
Inlet Fitting: 7.7mm ID, 11.0mm OD
Outlet Fitting: 5/16" Hose Clamp
PRV Activation: 110+ psi
Impeller Design: Single Scroll Composite Turbine
Connector Terminal: Spade Pos/Neg
Min Voltage Input: 6 Volts
Max Voltage Input: 18 Volts
Current Draw 40psi: 14.8 amps (13.5v)
*To ensure maximum voltage at the pump, a 12-gauge hardwire kit is strongly recommended for optimum performance
**DOES NOT Fit Flex Fuel Tundras
More Information
| Part Number | 9-437-1026, 6-45-M51 |
|---|---|
| Part Brand | DeatschWerks |
| Type of Part | Fuel Components |
| Engine Fitment | 5.7L |
| Length | 8 |
| Width | 6 |
| Height | 6 |
| Weight | 3.000000 |
