Details

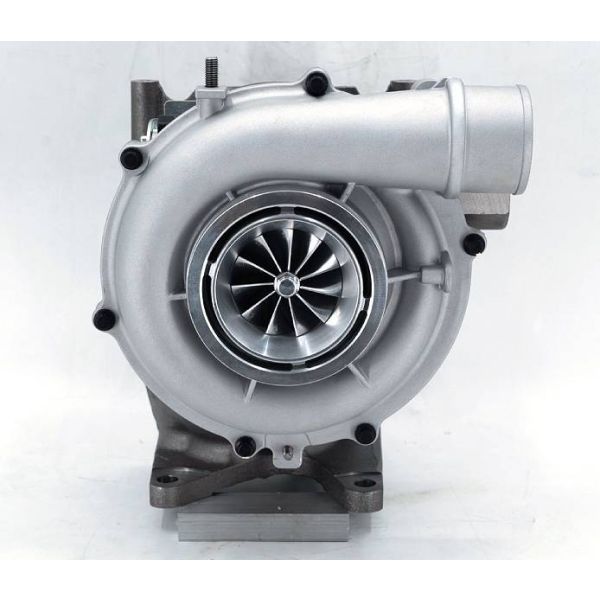

2011 - 2016 Chevy / GMC 2500/3500 LML DuramaxTuner 6.6L Stealth 64 Turbo Upgrade
The LML Stealth 64 is a stock appearing, direct replacement for your 2011-2016 LML Duramax. The upgraded billet compressor & turbine wheel are perfectly matched to our custom cut compressor cover and exhaust housing. Giving you the most efficient and best-performing turbo for your truck. Great for daily driving, recreational towing, and all-around performance!
Features & Benefits
- 650+ RWHP Peak
- 63mm Billet Compressor & Turbine Wheel
- 360-degree Thrust Bearing
- Quick Spool-Up
- Direct Bolt-On
- Great Daily Driving/Towing
This Turbo is Designed for you if you...
- Daily drive your truck
- Reliability and Performance are your top priorities
- Tow with your truck
- Prefer to simply swap your old turbo out for a new one
- Want more power when you need it, but still have excellent street manners!
Add on a Stealth Boost Tester.
Boost leaks can kill diesel engines. They cause higher EGTs, decrease your power, and lower fuel economy. Properly being able to test your entire charged air system is essential to getting peak performance and longevity out of your diesel engine. Charged air systems include everywhere from the turbocharger to the intake manifold. Your intercooler system, Exhaust Gas Recirculation components, and even the Turbocharger compressor cover can all develop boost leaks. This boost tester is exactly what you need if you work on diesel trucks regularly or just want to check the condition of your engine's charge system. Here's what you can get:
- Heavy Duty Regulator
- Extremely Accurate
- Testes Entire Charge system
- Precise control over test conditions
- Easy to use and read
- Premium parts built to last for a lifetime
- High-quality seals
- Liquid gauge prevents erratic readings
- Metal construction
- CNC Precision-Cut Adapter
- Perfect Fitment
- Clean look
- Intelligent design
- Made from high-quality materials
- Made and assembled in the USA
|
Fitment Specifications |
|||||||||
|
Year |
OEM |
Models |
OEM Part #(s) |
||||||
|
2011-2016 |
Chevy |
2500, 3500 |
§ 848212-5002S § 12642314 § 12642129 § 800799-0002 § 800799-0003 § GT3788VA § Garret 3788
|
||||||
|
2011-2016 |
GMC |
2500, 3500 |
|||||||
|
Measurement Specifications |
|||||||||
|
Compressor - Wheel Inducer |
Compressor - Inducer Bore |
Compressor - Wheel Blade Count |
Turbine - Wheel Exducer |
Turbine - Wheel Inducer |
Turbine - Wheel Blade Count |
Peak Power |
|||
|
63mm |
64mm |
11 blade |
67mm |
73mm |
10 |
650 RWHP |
|||
|
Maximum Recommended Boost Pressure (psi) for LML Stealth 64 |
|||
|
Altitude (ft) |
Barometric Pressure (psi) |
Baro (inHG) |
Max Safe Boost (psi) |
|
-1000 |
15.2 |
31.02 |
38.0 |
|
0 |
14.7 |
29.88 |
36.8 |
|
1000 |
14.2 |
28.86 |
35.5 |
|
2000 |
13.7 |
27.84 |
34.3 |
|
3000 |
13.2 |
26.83 |
33.0 |
|
4000 |
12.7 |
25.81 |
31.8 |
|
5000 |
12.2 |
24.8 |
30.5 |
* Not for sale in the state of California.
* ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSES ONLY. THE ACTUAL PRODUCTS MAY VARY DUE TO PRODUCT ENHANCEMENT.
More Information
| Part Number | DM1DH1070203000 |
|---|---|
| Part Brand | DuramaxTuner |
| Type of Part | Turbo Upgrades |
| Engine Fitment | Duramax 6.6L |
| Length | 16 |
| Width | 14 |
| Height | 14 |
| Weight | 50.000000 |
