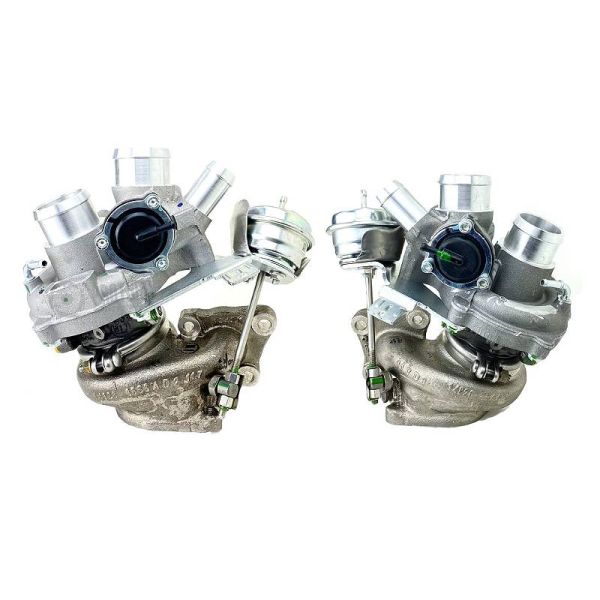

2011+ F150 / Raptor Ecoboost 2.7L & 3.5L Turbo Rebuild Service
TAGS: 2011 Up F150 / Raptor, Ecoboost, 2.7T, 3.5T, Turbo Rebuilds, Rebuilding Service, Turbo Balancing
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details
- Turbo disassembly
- Thorough inspection to determine failure & condition of turbo
- Turbo reassembly with all new bearing internals to OEM spec
- Full Balance
- Thorough part cleaning (your turbo will look & perform like new)
Common causes of turbo failure:
- Restricted Oil Feed Lines/Filters: Starves turbo for oil, prevents proper turbo bearing lubrication. Kinks in the feed line can restrict oil flow
- Internal Engine Bearing Failure: Metal/debris shavings contaminates oil and causes scoring of turbo bearings/internal turbo components
- Underperforming Oil Pump: The pump is overworked as it tries to pump oil through the clogged filters. Even when new turbo and filters are installed, limited oil pressure is still an issue
- Improper Oil Drain: Oil return line is kinked, clogged, or restricted and not allowing oil to return to the motor from the turbo
- Improper Use of Sealants/Gaskets: Blockage to oil passages can be caused from improper sealer used in feed/drain fittings, pieces of gasket material can break off and enter turbo
- Dirty Air Inlet: Reduce air supply to turbo can increase EGTs and excessive heat will destroy/crack turbo and potentially create a vacuum to draw oil through seals in compressor housing
- Excessive Fuel: Leads to higher EGTs and can cause warping/cracking and bearing failure
Improper Engine Shut Down: Rapid shut down of a hot engine will not allow oil to properly drain from the turbo and heat to adequately dissipate from the exhaust housing. - Engine/Turbo Intake Debris: Broken engine components (pistons, rings, valves), nuts, bolts, dirt, foreign material can damage compressor and turbine wheels, cause turbo failure this is called FOD (Foreign Object Damage)
- Clogged Engine Crankcase Vent/PCV Valve: Builds excessive engine crankcase pressure and does not allow oil to drain (blows out turbo seals)
- Engine Blow-by: Causes excessive crankcase pressure and will not allow turbo oil to drain
- Excessive Oil Pressure: Too much oil pressure causes oil seals to fail
- Improper Feed/Drain Hose Sizing: Oil cannot feed or drain adequately
Before sending your turbo to us, we’ll need to collect the initial payment for the work requested as well as the return cost of shipping. An e-mail will be sent to you with a work order number along with shipping instructions so we know who the turbo belongs to and what needs to be done to it once it arrives at our rebuild center.
When shipping your turbo, we request you play close attention to your packaging. Bagging your turbocharger then boxing it in a durable cardboard box with dense foam insulation is the ideal way to ship it. We recommend the box allow for 2-3” of clearance around the turbo to allow for ample protection and padding. If you don’t have dense foam packaging available, still place the turbocharger in a thick plastic bag and surround it with clean rags or densely packed newspaper. Please DO NOT use packing peanuts! If shipping a supercore or CHRA, ensuring you have securely wrapped the wheels is most import. Dense bubble wrap secured with tape is a fantastic option to protect those expensive, delicate components.
Once your turbocharger is packed securely, selecting a carrier that offers a tracking # and insurance on your shipment is important. PLEASE insure your expensive turbocharger for replacement value and e-mail the tracking # to us once you have it! Any additional information you can provide us about your turbocharger and shipment will save us both time and simplify your repair.
**Do not ship anything out until you receive a work order and shipping address from us. Failure to do so will result in delays and possible additional shipping charges.
More Information
| Part Brand | TurboKits.com |
|---|---|
| Type of Part | Turbo Rebuild Service |
| Engine Fitment | 2.7L/3.5L |
| Length | 20 |
| Width | 14 |
| Height | 14 |
| Weight | 40.000000 |
