2016-2022 Polaris RZR Turbo Rebuild Kit
TAGS: 2016, 2017, 2018, 2019, 2020, 2021, 2022, Polaris RZR XP, XPS, XP Pro, Turbo Rebuild Kit

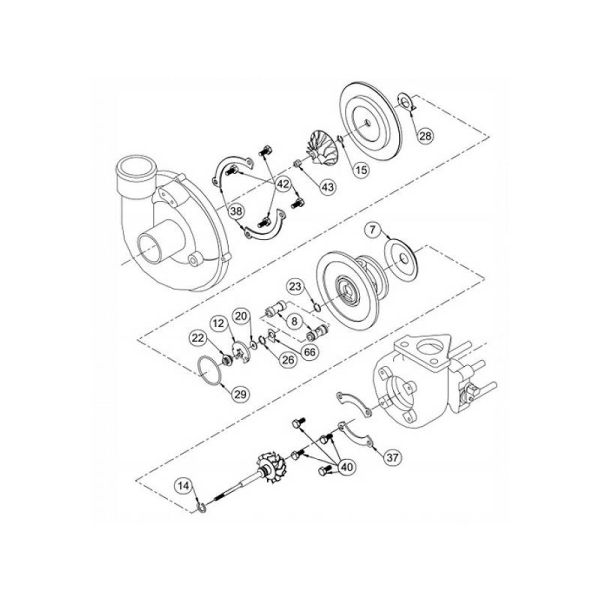

2016-2022 Polaris RZR XP Turbo Rebuild Kit
#1 Dual Oil Feed Journal Bearing
#2 Upgraded Piston Ring (For Better Oil Seal on Hot Side)
#3 Retaining Ring/Circlip for Journal Bearings
#4 Locking Clip for Journal Bearing
#5 Retaining Ring for Thrust Sleeve
#6 Flinger Sleeve
#7 Upgraded Thrust Bearing (Stronger with Better Thrust Surface)
#9 Thrust Collar
#10 Piston Ring for Compressor End
#11 O-Ring for Bearing Housing
#12 Locknut for Turbine Shaft
#13 Bolts for Compressor End
#14 Aluminum Washer for Boost Reference Line
#15 Bolts for Turbine End
#16 Locknuts for Wastegate Actuator Arm
*You will need to reuse your OEM oil flinger and compressor housing o-ring.
Considered the 'Best Rebuild Kit on the Market' for the Polaris RZR XP Turbo platform our rebuild kit includes a dual oil feed journal bearing for additoinal oiling to the shaft / bearing, upgraded 360 degree thrust bearing and step gap piston ring for better oil sealing on the hot side. All of this leads to increased life for your turbo!
2016-2022 Polaris RXR XP, XPS & XP Pro
TQ Specs for Comp Wheels:
RH - 28in lbs + 1/4 turn
LH - 28in lbs + 1/8 turn
Don't confuse our rebuild kits with the "cheap imitation" products found on auction sites or less than reputable online stores. Buy your USA, Canada or UK made rebuild kit from TurboKits.com and rest assured knowing you are receiving quality parts!
Don't want to rebuild the turbo yourself, check out the 2016-2022 Polaris RZR Turbo Rebuild & Balancing Service or our Brand New 2016-2019 Polaris RZR Turbo Replacement CHRA, thanks.
|Type of Part||Turbo Rebuild Kits|
