Details
2021+ GR Supra A90 A91 6 Port B58 DOC Top Mount Single Turbo Kit
Due to high demand we are looking at 4-6 weeks to ship your kit once it is placed. Kit is made to Order and can NOT be Canceled after it has been Processed!
DOC Race is offering a true bolt on turbo kit which will be available to purchase for your 2021+ 6 port Supra. We are using PTE turbos which have been proven in the industry to be one of the best performing and reliable turbos.
Now available in 2 different runner sizes:
- 1.25" schedule 40 is a runner size that is standard in the industry and has been known to produce well over 1200hp. Note that the 1.25" manifold has a high flow investment cast collector as part of the manifold.
- 1.5" schedule 40 is a much larger runner size that will produce less exhaust back pressure for guys really looking to squeeze every inch out of their setup. Contrary to popular belief using 1.5 runners does not produce more lag than 1.25".
Max HP ratings below:
- PTE 6266- 750whp
- PTE 6466- 825whp
- PTE 6870- 950whp

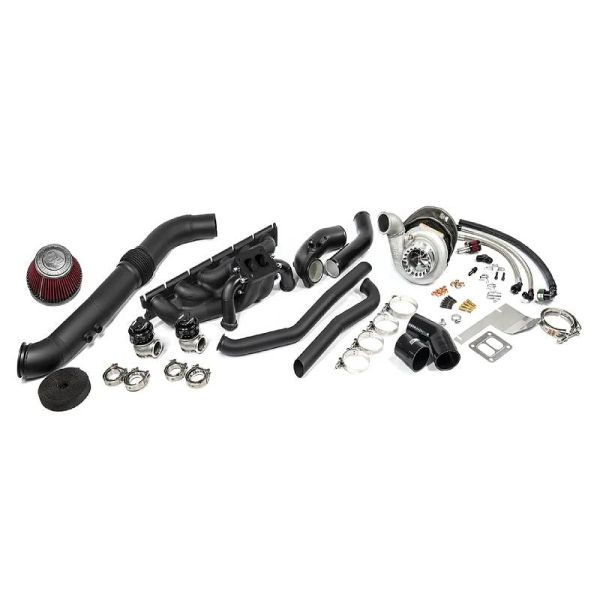

GR Supra B58 6 Port Turbo Kit Includes:
- PTE T4 Twin Scroll Next Gen Ball Bearing Turbo
- Tubular Stainless T4 twin scroll exhaust manifold
- Dual Turbosmart GenV 45mm wastegates
- 3.5” stainless downpipe
- Dual stainless wastegate dump tubes
- Charge pipe from turbo to TB (2)
- Silicone couplers and clamps
- Stainless oil drain line kit
- Stainless oil feed line kit
- Stainless coolant bypass line kit
- T4 gasket
- Turbo studs and nuts
- Exhaust v-band clamp
- 4” turbo screen
- Heat shield
- 1/4” nylon tubing and fittings (wastegate routing)
- Valve cover vent filter
- 3/4” boost caps (2)
Notes:
- This kit will work with PTE only. Please do not try to adapt this kit with any other turbo or you will be faced with horrible fitment issues.
- Although the kit is supplied with vacuum tubing for your wastegates it is your responsibility to route them so they don't melt. Routing the vacuum tubing correctly requires you to possibly disassemble your wastegates and point the inlet/outlet in the right direction. Routing your vacuum lines too close to your exahust will result in melted vacuum lines which could result in overboost/underboost.
- It is highly recommended to run an oil catch can kit if you are running more than 20psi.
More Information
| Part Number | DR-21-TOY-SUPRA-B58-TMSTK |
|---|---|
| Part Brand | DOC Race |
| Type of Part | Turbo Kits |
| Engine Fitment | B58 |
| Length | 48 |
| Width | 24 |
| Height | 12 |
| Weight | 105.000000 |
