Details

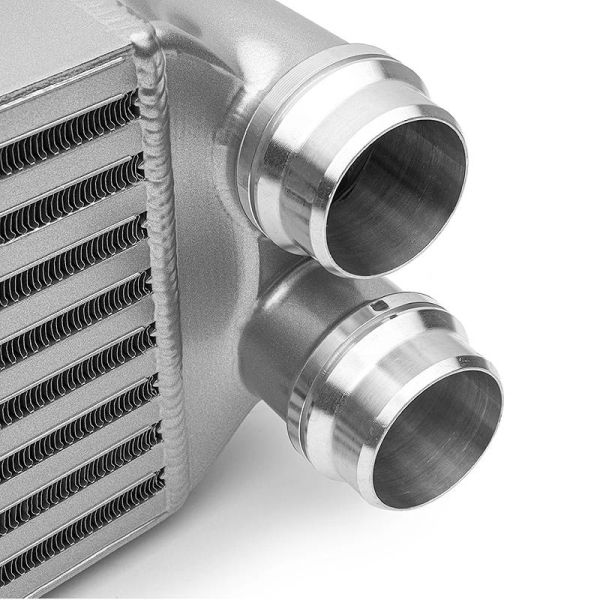

FORD FRONT MOUNT INTERCOOLER (FACTORY LOCATION) BRONCO RAPTOR 2022-2023
Introducing the COBB Front Mount Intercooler upgrade for the 2022+ Ford Bronco Raptor! A direct replacement of the factory intercooler, the COBB intercooler offers significantly improved cooling efficiency leading to higher, more consistent power.
-23% Increased Cooling Efficiency
-53% Larger Volume
-Billet aluminum end-tanks with TIG welded assembly
-No cutting, trimming, or permanent modification to the vehicle required
-Mates up snugly to OEM shutter shroud to funnel air through ambient side fins like OEM
The all-new billet aluminum, TIG welded assembly has a core with 53% greater volume than the stock unit. All while mating snugly to the OEM shutter shroud requiring absolutely no cutting, trimming, or permanent modification to the vehicle.
This FMIC was designed in house with attention to detail lacking on other aftermarket offerings. Computational fluid dynamic analysis was used to create the smoothest end tank design which increases flow evenly and resulted in no areas of significant turbulence. The outlet port of the intercooler was also designed with a large chamfer to provide a smooth transition out of the intercooler into the throttle body tube to further reduce turbulence in the system.
It’s no secret that the stock front mount intercooler (FMIC) on the Ford Bronco Raptor 3.0L EcoBoost trucks are undersized and can quickly become heat soaked. This causes a reduction in available power. For that reason, an upgraded front mount intercooler is the best hard part upgrade for your 2022+ Ford Bronco Raptor!
EMISSIONS - 50 State Legal.
This part is legal for sale and use on Emissions Controlled Vehicles in all 50 states when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive
Order (EO) number: D-660-163
More Information
| Part Number | 7R1550-SL, 7R1550-BK |
|---|---|
| Part Brand | COBB Tuning |
| Type of Part | Intercoolers |
| Engine Fitment | 3.0T |
| Length | 36 |
| Width | 24 |
| Height | 14 |
| Weight | 30.000000 |
