Details

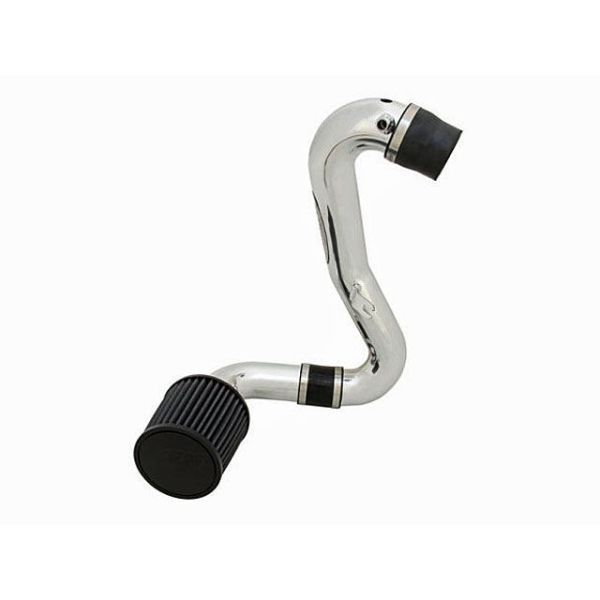

AEM Short Ram Intake
Affordable and simple horsepower upgrade
Improved throttle response and engine sound
Low restriction aluminum intake tube
Easy to install with common hand tools
Lasts up to 100,000 miles before service is required (depending on driving conditions)
Washable and reusable lifetime air filter
AEM Lifetime Limited Warranty
The AEM 22-503B fits some Honda Civic DX, Honda Civic LX, and Honda Civic Value Package models. See vehicle applications for details.
The AEM 22-503B Performance Short Ram Air Intake System has been engineered to be an affordable and easy way to boost the horsepower and torque of your engine. The restrictive factory air filter and air intake housing are replaced with this AEM air intake system which was designed, tuned and dyno-tested to fit specific Honda Civic DX, LX and Value Package models. Air enters the system through an oversized AEM Dryflow synthetic washable air filter for outstanding air flow, filtration and performance. The sound your engine makes when accelerating is also modified to a fuller, more aggressive resonance allowing you to hear and feel the horsepower upgrade. The intake tubing is constructed from mandrel-bent aluminum featuring a durable blue powder coated finish. This air intake system was developed to accommodate the engine’s factory emissions control devices including the intake air temperature sensor and breather hose. The tapered cylinder shaped AEM Dryflow air filter is made from an oil-free, synthetic filter media that can be used for up to 100,000 miles before cleaning is needed (depending on driving conditions). The air intake system is easy to install with commonly available tools and it is backed by AEM's Lifetime Limited Warranty. Some AEM air intakes are not legal for sale or use in California and other states adopting California emission standards, while others are 50 state legal. View the 22-503B vehicle applications to determine the legal status for each vehicle.
Specifications AEM 22-503B Product Specifications
Replacement Filter - 21-202DK
Air Filter Color - Red
Air Filter Material - Non-woven Synthetic
Air Filter Outlet Shape - Round
Clamps Included - 6
Clamp Material - Steel
Clamp Style - Regular
Couplers Included - None
Product Style - AEM Short Ram Intake System
Air Filter Height - 5.25 in (133 mm)
Intake Pipe Color / Finish - Blue/Red/Polished
Intake Pipe Material - Aluminum
CARB EO Number - D-670-15
Street Legal In All US States - Yes
TUV Approved (Europe) - No
Weight - 7 lb (3.2 kg)
Air Filter Large End Diameter - 6 in (152 mm)
Product Box Height - 11.6 in (295 mm)
Product Box Length - 24.38 in (619 mm)
Product Box Width - 12.2 in (310 mm)
Color - Blue/Red/Polished
Mounting Hardware Included - Yes
Applications:
2005 Honda Civic Value Package 1.7L L4 F/I
All Models Street Legal In All US States:Yes
CARB EO Number: D-670-15 TUV Approved (Europe): No
2005 Honda Civic LX 1.7L L4 F/I
All Models Street Legal In All US States:Yes
CARB EO Number: D-670-15 TUV Approved (Europe): No
2005 Honda Civic DX 1.7L L4 F/I
All Models Street Legal In All US States:Yes
CARB EO Number: D-670-15 TUV Approved (Europe): No
2004 Honda Civic Value Package 1.7L L4 F/I
All Models Street Legal In All US States:Yes
CARB EO Number: D-670-15 TUV Approved (Europe): No
2004 Honda Civic LX 1.7L L4 F/I
All Models Street Legal In All US States:Yes
CARB EO Number: D-670-15 TUV Approved (Europe): No
2004 Honda Civic DX 1.7L L4 F/I
All Models Street Legal In All US States:Yes
CARB EO Number: D-670-15 TUV Approved (Europe): No
2003 Honda Civic LX 1.7L L4 F/I
All Models Street Legal In All US States:Yes
CARB EO Number: D-670-15 TUV Approved (Europe): No
2003 Honda Civic DX 1.7L L4 F/I
All Models Street Legal In All US States:Yes
CARB EO Number: D-670-15 TUV Approved (Europe): No
2002 Honda Civic LX 1.7L L4 F/I
All Models Street Legal In All US States:Yes
CARB EO Number: D-670-15 TUV Approved (Europe): No
2002 Honda Civic DX 1.7L L4 F/I
All Models Street Legal In All US States:Yes
CARB EO Number: D-670-15 TUV Approved (Europe): No
2001 Honda Civic LX 1.7L L4 F/I
All Models Street Legal In All US States:Yes
CARB EO Number: D-670-15 TUV Approved (Europe): No
2001 Honda Civic DX 1.7L L4 F/I
All Models Street Legal In All US States:Yes
CARB EO Number: D-670-15 TUV Approved (Europe): No
More Information
| Part Number | 22-503B, 22-503R, 22-503P |
|---|---|
| Part Brand | AEM |
| Type of Part | Intakes |
| Engine Fitment | 1.7L |
| Length | 24 |
| Width | 12 |
| Height | 12 |
| Weight | 7.000000 |
