•Stock Replacement with no core charge
•A direct bolt-on replacement; all connections to the vehicle are compatible with the OE geometry
•Additional fueling is not required
•Wastegate actuator is included and comes preset
•In house testing produced a max gain of +13 horsepower and +28 lbs. x ft. of torque, verified by our in house dyno
Compressor Inducer - 60 mm
Compressor Exducer - 80 mm/ Trim 56
Turbine Inducer - 77 mm
Turbine Exducer - 67.5 mm/ Trim 77
Exhaust A/R - 0.84

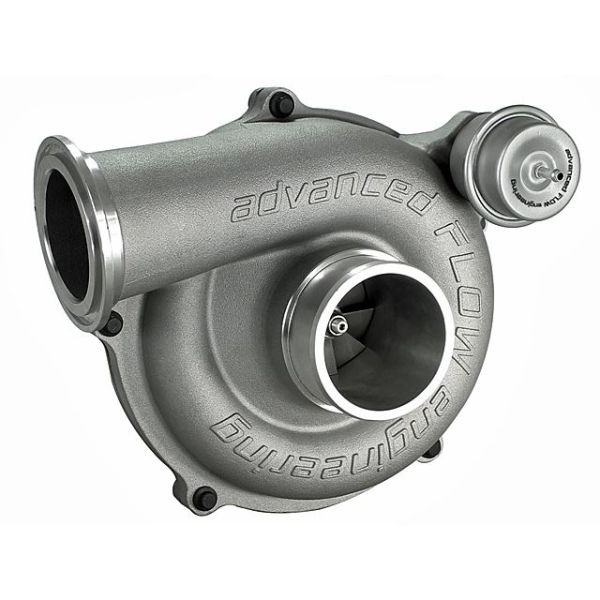

This turbo can be installed on 1999.5-2003 model years as a direct, bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection. Additional fueling is not required for improved performance over OE, but maximum gains are achieved from fuel system upgrades, either electronic or mechanical. An optional high-flow turbine outlet also helps lower exhaust gas temperatures.
A356 aluminum housing utilizes OE inlet and v-band outlet. A wastegate actuator is mounted to the integrated cast bracket and comes preset but is adjustable.
2000-2003 Excursion V8-7.3L (td)
|Type of Part||Turbo Upgrades|
|Engine Fitment||Powerstroke 7.3L|
