•Clear high-impact polycarbonate sight glass for visual inspection of fuel
•Helical Spur Gears runs quieter than straight cut gears
•"Marine Grade" motor protects against dust and water
•Contoured CNC manifold enhances flow
•Fuel pressure O.E. quality Viton Sealsgauge port
•Typical install is 2 hours
•Built in the U.S.A
Clear High-Impact Polycarbonate Sight Glass:
Allows visual inspection of fuel.
Helical Bronze Spur Gears:
Bronze gears more forgiving of contaminants than steel gears. The Helical spur gear design runs quieter than straight cut gears.
Billet 6061-T6 Aluminum Manifold:
Eliminates porosity concerns with cast aluminum.
"Marine Grade" Motor:
Protected against dust intrusion and powerful water jets.
Plug & Play Installation:
Supplied harness attaches directly to battery and utilizes Deutsch weather-proof connectors. No cutting or modifications of the stock fuel lines required. Vehicle can easily be returned to stock.

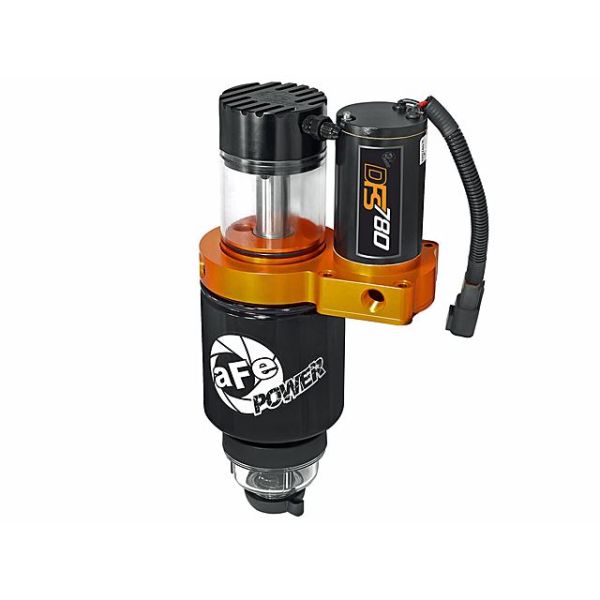

The DFS780 is powered by your ignition and can be run independently or in parallel with the stock fuel pump.
PEEK Bearing Wear Surfaces:
The DFS780 spur gears ride on PEEK (Polyether Ether Ketone) bearing surfaces to reduce both noise and wear.
Contoured CNC Machining Of Manifold Passages:
Enhances flow through the manifold to reduce pressure drop due to flow restrictions.
Direct Bolt-on Steel Mounting Bracket:
Heavy duty bracket mounts to the frame and utilizes existing hole to secure.
Fuel Pressure Gauge Port:
1/8” NPT port allows customer to attach an external pressure gauge to monitor fuel pressure.
O.E Quality Viton Seals:
Compatible with diesel and biodiesel fuels.
Note: This system is not currently CARB exempt and is not available for sale in California or for use on any vehicle registered with the California Department of Motor Vehicle.
|Type of Part||Fuel Components|
|Engine Fitment||Cummins 5.9L & 6.7L|
