AMS 2009+ Omega 11 R35 GTR Turbo Kit - 1100WHP
NO LONGER AVAILABLE!
Found it for less but value our service?
Details

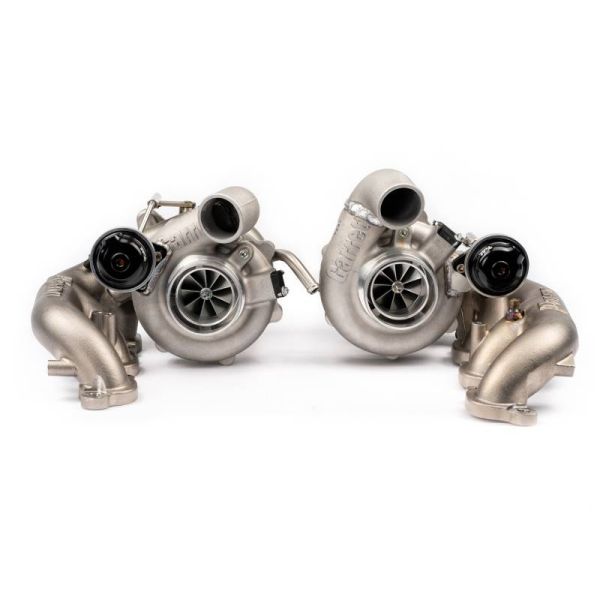

AMS 2009+ Omega 11 R35 GTR Turbo Kit
Since 2009, the standard practice for stock-style turbo upgrades on the R35 Nissan GTR has been to utilize the OEM “turbofolds” and machine the housings to accept larger aftermarket turbo CHRAs. The downside to this method is that the factory manifold is designed for compactness and packaging, as well as only optimized for OEM power and boost levels, meaning if you try to modify them, their limitations become apparent. Many of the current stock-style offerings on the market have lackluster boost control, or worse, excessive boost creep — some so bad that standard 93 octane pump gas cannot be used, requiring owners to run high octane race fuel at all times. With the introduction of the 2020 GT-R, the AMS Snailworks© Engineering Team knew there was a way to optimize their stock location turbo kit offerings to match the OEM two-piece manifold and turbine housing design with integrated improvements. By casting a pair of two-piece style manifolds and turbine housings, AMS was able to optimize all of the shortcomings of the OEM castings, including doing away with expensive core charges and machining lead times altogether.
The AMS Performance ALPHA line of turbo kits have been the benchmark in GTR performance for years with countless world records, awards, and championships. The ALPHA name is the brand by which everything else is measured. Now, AMS is incredibly proud to announce the next evolution in our R35 GTR turbo kits, the OMEGA Turbo Kit line. Taking it’s name from our most notorious street car build to-date, the ALPHA OMEGA GTR, the mission with the OMEGA line has been to deliver the best performing and most reliable street car turbo kits — without compromise.
• THE FIRST AND ONLY 2020-STYLE TWO-PIECE MANIFOLD DESIGN ON THE MARKET
• NO MORE CRACKED OEM WASTEGATE PORT HOLES, ZERO CORE CHARGE, NO WAIT TIME
• UTILIZES NEW G30-660 GARRETT© G-SERIES TURBOCHARGER CHRAS W/ 54MM INDUCERS
• OMEGA 11 IS CAPABLE OF MID 8 SECOND QUARTER MILE TIMES AND 1100+ WHP*
• OPTIMIZED AND MORE EFFICIENT EXHAUST MANIFOLDS
• NEW WASTEGATE PORT DESIGN FOR IMPROVED BOOST CONTROL AND REDUCED BOOST CREEP
• TIAL MVI 2.5D WASTEGATES ALLOW ADJUSTABLE BASE SPRING PRESSURE
• GARRETT COMPRESSOR COVER ALLOWS FOR FULL 3″ INTAKE TO BE USED
• SHOW STOPPING DESIGN AND EXOTIC CASTING MATERIALS
• WORKS IN CONJUNCTION WITH YOUR EXISTING ALPHA 7 (“FULL BOLT ON”) MODIFICATIONS
• FULL 3″ AMS LICP KIT AVAILABLE SEPARATELY TO MAXIMIZE POWER
KIT INCLUDES:
• Garrett© G30-660 G-Series CHRAs
• Garrett© G-Series Compressor Covers (Custom Modified for Application Fitment)
• TiAL MVI 2.5D Wastegates
• AMS Cast Exhaust Manifolds (2020-Style 2 Piece Design) (Optional)
• AMS Cast Turbine Housings w/ Optimized Wastegate Ports
• AMS 94mm to 3″ Inlet Tubes to Mate to AMS 3″ Carbon Fiber Intakes (Intakes Available Separately)
• AMS Couplers to Connect to OEM Lower Intercooler Pipes (AMS 3″ LICP Kit Available Separately)
• AMS Ancillary Components, Including all Hardware, Lines, Couplers, and Fittings
PRODUCT NOTES:
*Fits All USDM, JDM, Gulf, and European Models (LHD and RHD)
*2020+ Model Year Vehicles Will Reuse their Existing OEM Exhaust Manifolds. 2009-2019 Model Year Vehicles Must Use Full AMS Turbine Housing and Manifold System.
*Not Compatible with OEM Stock Intakes. Fitment with Other Brand Aftermarket 3″ Intakes Not Guaranteed. AMS Carbon Intakes Required.
*Compatible with OEM LICP, However Upgraded AMS 3″ Lower Intercooler Piping Available Separately
THE GARRETT© G-SERIES TURBOS & TIAL WASTEGATES:
The new Garrett© G-Series turbos are a complete clean sheet redesign of the performance turbocharger lineup from Garrett©, with the intention of improving horsepower output while simultaneously decreasing spool time. Utilizing these cutting edge turbos in the OMEGA 11 have shown staggering increases in horsepower and spool compared to older aero technology from just a few years ago. The new G-Series turbochargers feature new compressor wheel aerodynamics and new turbine wheel aero constructed of Mar-M alloy rated for 1055°C, meaning you are getting the most advanced and highest performing turbos by Garrett© to date.
To further improve power output, these Garrett© G-Series CHRAs use Garrett G-Series compressor covers. These AMS Performance modified covers allow for greater airflow compared to the tiny OEM 2-bolt cover found on many smaller turbo systems. These details are what sets the OMEGA line of turbos apart from the rest. The AMS team has even gone the extra mile and pre-installed the oil and water lines to the CHRA as well as clocked the compressor cover to save you installation time and effort.
The MVI 2.5D unit is TiAL’s compact wastegate actuator standing only 2.2” in height without fittings and actuator rod. This compact design makes it easier for installations involving confined space like in the OMEGA turbo kit line for the R35 GTR platform. These ultra robust CNC machined 6061 aluminum wastegates allow for quick spring changes by way of their locking cap design. While they have pre-installed the most commonly used base pressure springs (18psi), all springs are included to set your own base pressure as your unique set-up requires. Precise boost control has never been easier!
ENGINEERED TO WIN:
The AMS SnailWorks© Engineering Team has spent hundreds of R&D hours refining the AMS Performance OMEGA 11 R35 GTR Turbo Kit to be the best performing, highest quality, and easiest to install kit on the market. This R35 turbo kit is designed with minimal bends and restrictions to smoothly and efficiently feed more air through the exhaust and intake paths allowing your VR38 engine to breath easier. AMS also designed an improved wastegate solution and created an actuator rod to allow the mounting of the TiAL MVI 2.5D wastegates to the new turbos. Then, focusing on the small details, they made sure to have the turbos properly clocked and high quality coolant and oil lines pre-assembled for a leak-free install.
The AMS SnailWorks© Engineering Team has designed the OMEGA Turbo Kits to be a direct bolt-in install without hacking up your prized possession. The OMEGA line is fully compatible with A/C, power steering, and all other factory options, and is easily reversible back to stock with a few inexpensive replacement parts. The OMEGA turbo system upgrades for the R35 Nissan GTR have been engineered from the ground up to create a line of turbo kits that will redefine GTR aftermarket performance and position them to be the most recognized and sought after kits on the market.
HIGH PERFORMANCE CASTINGS FOR HIGH PERFORMANCE APPLICATIONS:
The OEM R35 GTR has historically used a one piece “turbofold”, which integrates the turbine housing into the manifold. While this is great for packaging a turbo assembly within a constrained space, it makes modifying for larger turbochargers much more difficult. For the 2020 model year, Nissan introduced a two piece design allowing for much easier turbo swaps. The new OMEGA turbo kit line is the first aftermarket solution to utilize this same two-piece design principle. The AMS SnailWorks© Engineering Team drafted a completely optimized runner, collector and turbine housing design to provide more exhaust flow than the OEM manifold.
One of the key features of the casting has been a reimagined wastegate port design for exceptional boost control and reduced boost creep. This design allows for reduced flow disturbance, a 27% larger wastegate port, and a more direct flow path for exhaust gasses to travel. This design allows for a way to feed exhaust gasses as efficiently as possible to both the turbine wheels and wastegates simultaneously. The AMS OMEGA turbo line is also built to be tough, and uses proprietary exotic casting materials for improved corrosion resistance and durability at extreme temperatures.
*HORSEPOWER AND TORQUE NUMBERS, QUARTER MILE TIMES, 0-60 MPH, 60-130 MPH AND OTHER RECORDED TIMES ARE APPROXIMATE AND CAN VARY SIGNIFICANTLY DEPENDING ON NUMEROUS FACTORS SUCH AS YOUR AMBIENT TEMPERATURE, ELEVATION, TIRE SELECTION, ROAD SURFACE MATERIAL, FUEL OCTANE AND QUALITY, AND VEHICLE WEIGHT, AMONG MANY OTHERS. THE ADVERTISED NUMBERS HEREIN ARE BASED ON OPTIMAL CONDITIONS AND UTILIZING PROPER SUPPORTING MODIFICATIONS, BUT ARE GENERALLY ATTAINABLE RESULTS BY AN AVERAGE CUSTOMER. YOUR RESULTS MAY VARY.
More Information
Part Number | ALP.07.14.0201-1, ALP.07.14.0201-2 |
---|---|
Brand | AMS Performance |
Type of Part | Turbo Kits |
Engine Fitment | VR38DETT |
Length | 27 |
Width | 20 |
Height | 10 |
Weight | 60.000000 |
