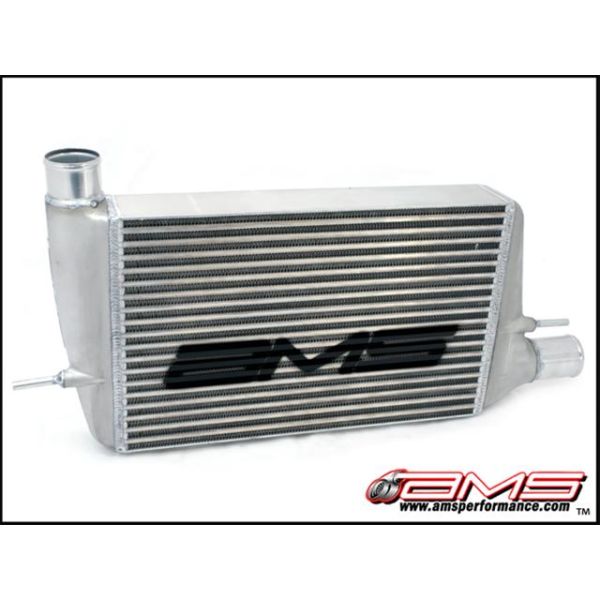

AMS Intercooler (FMIC)

The AMS replacement intercooler core for your EVO X is a direct bolt on utilizing your stock piping hangers and mounting points with purpose built end tanks for the EVO X. This intercooler has over 80% more internal flow area than its stock counterpart. This bar and plate style core is 12.4" tall, 20" wide and 3.625" thick with over 1250 cfm flow. This intercooler on our Test EVO X here with just a stock turbo picked up 10 Wheel horsepower over the stock core just by bolting it on!

Some of the attributes of the AMS EVO X Front Mount Intercooler:

• All AMS intercoolers are pressure tested after assembly
• Direct Factory Replacement with No cutting or trimming required
• Available with or without an AMS logo Stenciled on the core
• 80% more flow area over stock
• The core is rated at only 1psi of pressure drop at 650 Whp
• Utilizes the factory Intercooler hangers along with added Supports
• Radiused at the inlet & outlet for smooth air-flow
