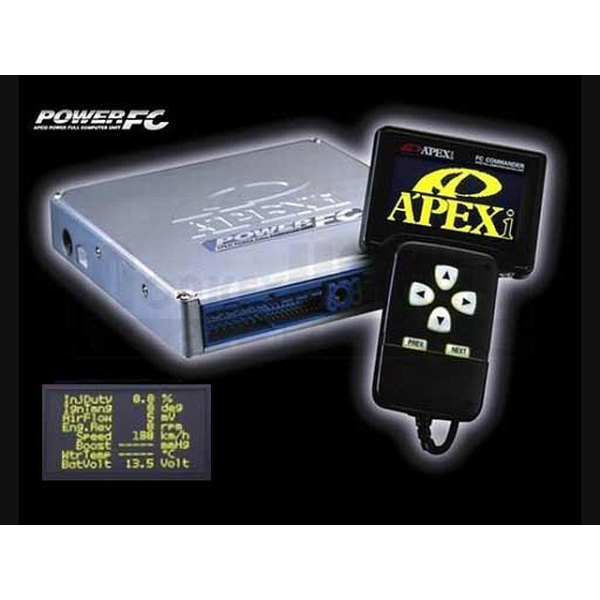

2ZZ Apexi Power FC and Commander
Found it for less but value our service?
Details
The Apexi Power FC is a powerful standalone ECU solution that plugs right in the the factory harness of your 2000-2002 Celica GTS with manual trans.
You can do some tuning with the supplied Commander but for best results and definitely for anyone with forced induction you'll want the Datalogit system which is available separately. It allows full tuning with a laptop as well as datalogging functions.
The Power FC proudly stands as A'PEXi's answer to the constraints and limitations associated with most piggy-back style fuel controllers. The Power FC is a complete, stand alone, total engine management system capable of handling virtually anything thrown in its path. From multiple point fuel and ignition control to VVTi and VVTLi control, the Power FC is capable of accommodating even the most demanding performance enthusiasts.
Currently available exclusively through Power Excel Shops the Power FC replaces the factory ECU and controls all vital engine parameters (Off road use only, no OBD-II). Installation is as easy as replacing the factory ECU. The factory engine harness does not need to be replaced and all critical accessories such as air conditioning continue to function. By using the included FC COMMANDER, the user can adjust and modify a wide range of settings.
The Power FC operates off of three Main Menus. These menus are: Monitor, Setting, and ETC.
In Monitor Mode, the Commander can display up to 10 parameters of data in real time.
- Monitor Mode can display:
- Engine RPM
- Ignition Timing
- Vehicle Speed
- Air Flow Voltage
- Injector Duty Cycle
- Knocking Level
- Battery Voltage
- Intake Air Temp
- Water Temp
In addition, there are 4 display patterns allowing 1-8 parameters to be shown on screen simultaneously. The data displays in numerical real time values with the option of a real time 10 second graph display. Peak Hold values and Display Hold functions only require the touch of a button. The Map Trace Mode allows Ghost Map Tracing of the Fuel Correction and Ignition Timing maps. This allows the user to visually see what point of the map is being used in real time. The Ghost Map Trace function leaves markers on the used portions of the map for easy reference.
Setting Mode allows full access to the 20x20 ignition timing and fuel correction maps. The user can adjust any portion of this map in 5x5 sections. Air flow correction values can be entered for vehicles upgrading air flow meters. Injector pulse correction menu is used when upgrading injectors. The Acceleration Enrichment Correction function improves response under hard and sudden acceleration. The Cranking Fuel Injection menu corrects the amount of fuel delivered when the engine is being cranked, or when the water temperature is cold. A separate Water Temp menu allows fuel correction according to water temperature. The RPM menu allows rev limiter settings and idle RPM levels. Access menus also vary according to specific applications. Changing data is easy: just access the desired point on the map or data, and push the FC COMMANDER keys in the appropriate direction.
The ETC Menu contains utility parameters such as: version information, LCD screen brightness, and initialization of all data. In addition, the ETC Mode allows the user to monitor all factory sensors through one screen. This screen can tell the user if any sensor is in use or malfunctioning
More Information
| Part Number | APX-414BT007 |
|---|---|
| Part Includes |
|
| Brand | Apexi |
| Type of Part | Engine Management |
| Engine Fitment | 1.8L (2ZZ-GE) |
| Length | 12 |
| Width | 12 |
| Height | 6 |
| Weight | 8.000000 |
