ATP Garrett GT2860R Turbo Upgrade - RB26DETT (620HP)
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details
1989-2002 RB26 Skyline GTR Garrett GT2860R Turbo Upgrade, 55 Trim, 620HP, 62 Trim, 700HP and GT2871R (800HP), R32, R33, R34, Garrett
PRODUCT DESCRIPTION:

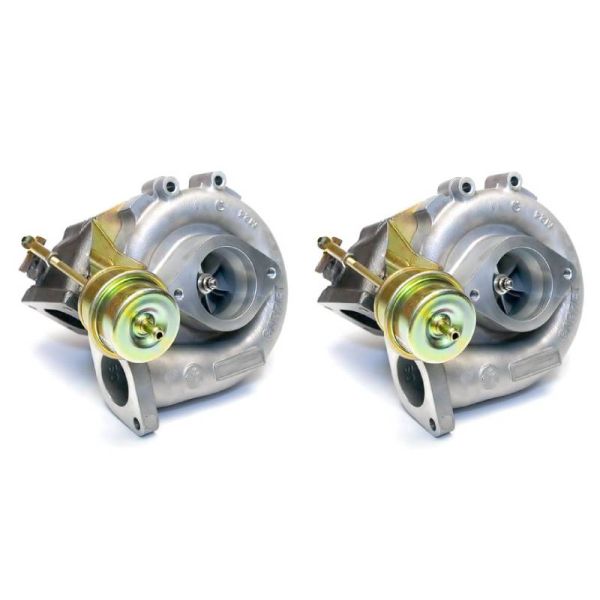

Dual Ball Bearing GT2860R turbo (base Garrett P/N 707160-7 (55 Trim), 707160-5 (62 Trim), 780371-2 (GT2871R) assembly with T25 style turbine inlet. Comes with internally wastegated style T25 turbine housing that is unique and same as Skyline style (tapped turbine inlet holes, unique turbine discharge pattern, and low profile housing neck) and Skyline style compressor housing with 2 bolt inlet and 2 bolt outlet. Includes wastegate actuator bracket and actuator from the factory (also unique to these turbo).
PRODUCT FEATURES:
Dual ball bearing CHRA rotating assembly
Bolt-on for Nissan RB26DETT motor
APPLICABLE GARRETT PART NUMBERS:
836026-4, 836026-5004S, 707160-7, 707160-5007S, 836026-5, 836026-5005S, 707160-5, 707160-5005S, 836026-6, 836026-5006S, 707160-10, 707160-5010, 780371-2
More Information
| Part Number | 836026-5004S, GRT-TBO-046, 836026-5005S, GRT-TBO-037 |
|---|---|
| Part Brand | Garrett |
| Type of Part | Turbo Upgrades |
| Engine Fitment | RB26DETT |
| Length | 20 |
| Width | 15 |
| Height | 15 |
| Weight | 36.000000 |
Reviews
Fitment
1989-2002 RB26 Skyline GTR Garrett GT2860R Turbo Upgrade, 55 Trim, 620HP, 62 Trim, 700HP and GT2871R (800HP), R32, R33, R34, Garrett
PRODUCT DESCRIPTION:
Dual Ball Bearing GT2860R turbo (base Garrett P/N 707160-7 (55 Trim), 707160-5 (62 Trim), 780371-2 (GT2871R) assembly with T25 style turbine inlet. Comes with internally wastegated style T25 turbine housing that is unique and same as Skyline style (tapped turbine inlet holes, unique turbine discharge pattern, and low profile housing neck) and Skyline style compressor housing with 2 bolt inlet and 2 bolt outlet. Includes wastegate actuator bracket and actuator from the factory (also unique to these turbo).
PRODUCT FEATURES:
Dual ball bearing CHRA rotating assembly
Bolt-on for Nissan RB26DETT motor
APPLICABLE GARRETT PART NUMBERS:
836026-4, 836026-5004S, 707160-7, 707160-5007S, 836026-5, 836026-5005S, 707160-5, 707160-5005S, 836026-6, 836026-5006S, 707160-10, 707160-5010, 780371-2
