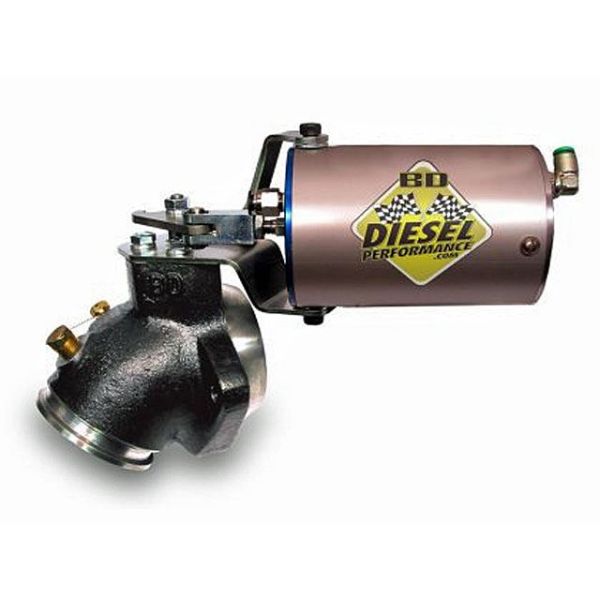

BD Diesel Brake - 60psi Vac - Turbo Mount
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details
BD's exclusive Variable Orifice Technology
BD's solid, offset butterfly
Spring loaded cylinder
Pressure regulation
Provides up to 150 retarding horsepower throughout the engine's RPM range
Rugged, cast-iron housings
BD's exclusive alumibronze bushing
Piston ring-seals
Stainless steel butterfly shaft
Proven to stand-up under the harsh, high heat conditions of the exhaust environment
All mounting hardware are made of corrosion resistant stainless steel
There's a reason why the BD Brake is the most widely-recognized diesel exhaust brake in the industry: It's the best! Compare it to the competition, and you'll see why.
Warranty
Parts
24-Months
24,000 Miles
Labour
12-Months
12,000 miles
Note
1989-1998 12-valve engines require 1030060 exhaust valve spring kit
1989-1993 turbo mount brakes require 1040050 down pipe kit
1996-1998 "California" spec engines with EGR require 1030030 Kit
Trucks with automatic transmissions are suggested to also install an AutoLoc for electronic controlled lock-converters, or, a lower stall converter for manual or no lock-up converters
Exhaust Back Pressure test gauge kit 1030050 suggested for the set-up of exhaust brakes
Trucks with aftermarket turbos (with the exception of 1045161 Killer B) would require remote mount exhaust brake
More Information
| Part Number | 2033135 |
|---|---|
| Part Brand | BD Diesel |
| Type of Part | Engine |
| Engine Fitment | Cummins 5.9L |
| Length | 9.0 |
| Width | 19.0 |
| Height | 10.0 |
| Weight | 18.000000 |
Reviews
Fitment
BD's exclusive Variable Orifice Technology
BD's solid, offset butterfly
Spring loaded cylinder
Pressure regulation
Provides up to 150 retarding horsepower throughout the engine's RPM range
Rugged, cast-iron housings
BD's exclusive alumibronze bushing
Piston ring-seals
Stainless steel butterfly shaft
Proven to stand-up under the harsh, high heat conditions of the exhaust environment
All mounting hardware are made of corrosion resistant stainless steel
There's a reason why the BD Brake is the most widely-recognized diesel exhaust brake in the industry: It's the best! Compare it to the competition, and you'll see why.
Warranty
Parts
24-Months
24,000 Miles
Labour
12-Months
12,000 miles
Note
1989-1998 12-valve engines require 1030060 exhaust valve spring kit
1989-1993 turbo mount brakes require 1040050 down pipe kit
1996-1998 "California" spec engines with EGR require 1030030 Kit
Trucks with automatic transmissions are suggested to also install an AutoLoc for electronic controlled lock-converters, or, a lower stall converter for manual or no lock-up converters
Exhaust Back Pressure test gauge kit 1030050 suggested for the set-up of exhaust brakes
Trucks with aftermarket turbos (with the exception of 1045161 Killer B) would require remote mount exhaust brake
