BD Diesel Super B Killer SX-E S361 Turbo Kit
Found it for less but value our service?
Details
BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability
The new SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing
Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds
BD exclusive feature of a heavy sprung waste-gated T3 turbine housing that mounts onto stock exhaust manifolds
BD's HD Waste gate and bracket holds boost and prevents over speed damage
Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning

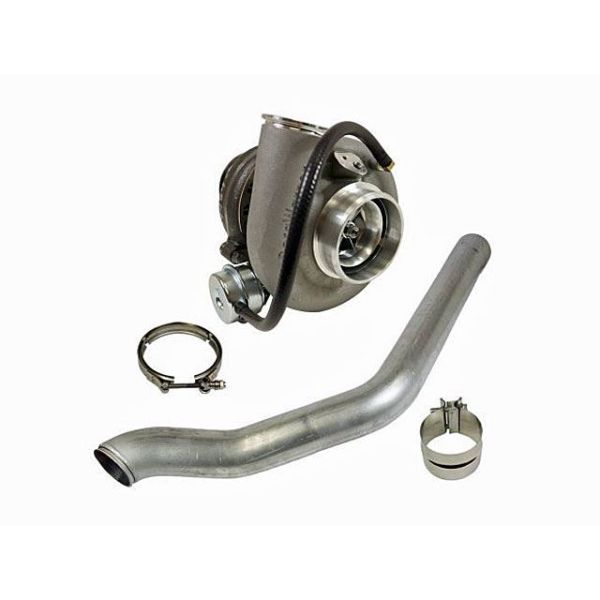

Kit comes with downpipe, V-band clamp, band clamp
Comp Wheel: 61.44mm 2.42in
Turbine Wheel: 76mm 2.99in
A/R Ration: 0.80
Flow: 77 Lb/min
Approximate rated 500hp (depending on truck configuration)
Warranty
Parts
12-Months
12,000 Miles
Note
Turbo mount exhaust brake cannot be installed with this kit - use remote mount exhaust brake
Not for sale on licensed California vehicles
More Information
Part Number | 1045265 |
---|---|
Brand | BD Diesel |
Type of Part | Turbo Upgrades |
Engine Fitment | Cummins 5.9L |
Length | 13.0 |
Width | 56.0 |
Height | 13.0 |
Weight | 67.000000 |
Reviews
Fitment
BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability
The new SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing
Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds
BD exclusive feature of a heavy sprung waste-gated T3 turbine housing that mounts onto stock exhaust manifolds
BD's HD Waste gate and bracket holds boost and prevents over speed damage
Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning
Kit comes with downpipe, V-band clamp, band clamp
Comp Wheel: 61.44mm 2.42in
Turbine Wheel: 76mm 2.99in
A/R Ration: 0.80
Flow: 77 Lb/min
Approximate rated 500hp (depending on truck configuration)
Warranty
Parts
12-Months
12,000 Miles
Note
Turbo mount exhaust brake cannot be installed with this kit - use remote mount exhaust brake
Not for sale on licensed California vehicles
