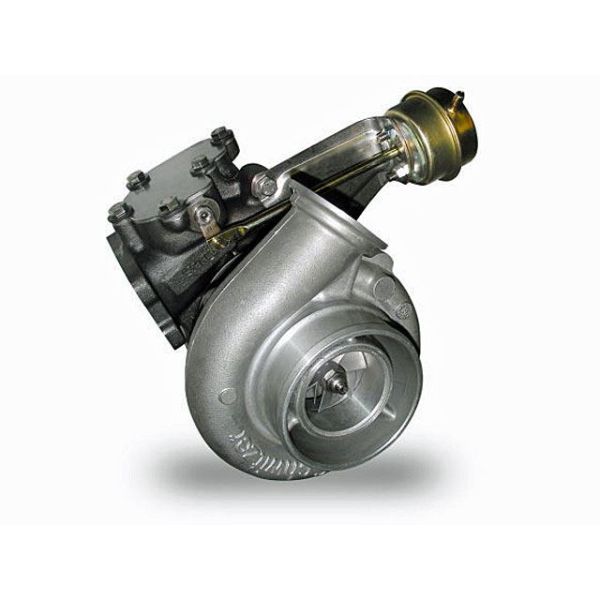

BD Diesel Super B Single Turbo Kit
Found it for less but value our service?
Details
Forged Milled Billet Wheel
Custom built to BD specifications, not a box turbo
Quick spool-up with no surging
Cooler EGTs & less smoke
Special low inertia, full-floating 6-pad thrust bearings, not 3 pad like box turbos
Dual volute T3 turbine housing utilizes low rpm exhaust pulses for improved turbine response
Efficient positive boost-to-drive pressure ratio yields high power with low EGTs
Perfect fitment to the stock turbocharger inlet connection points
BD's HD Waste gate and bracket holds boost and prevents over speed damage
Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning
Most systems can be upgraded to a twin system for more power or even better towing performance
870 CFM / 450 HP
Comp Wheel: 58mm 2.28in
A/R Ration: 0.80
Cast Outlet Elbow, V-Band Clamps, Heat Wrap
Turbine Wheel: 74mm 2.91in
Warranty
Parts
12-Months
12,000 Miles
Note
Turbo mount exhaust brake cannot be installed with this kit - use remote mount exhaust brake
Not for sale on licensed California vehicles
More Information
| Part Number | 1045230 |
|---|---|
| Brand | BD Diesel |
| Type of Part | Turbo Upgrades |
| Engine Fitment | Cummins 5.9L |
| Length | 64.0 |
| Width | 12.0 |
| Height | 12.0 |
| Weight | 68.000000 |
