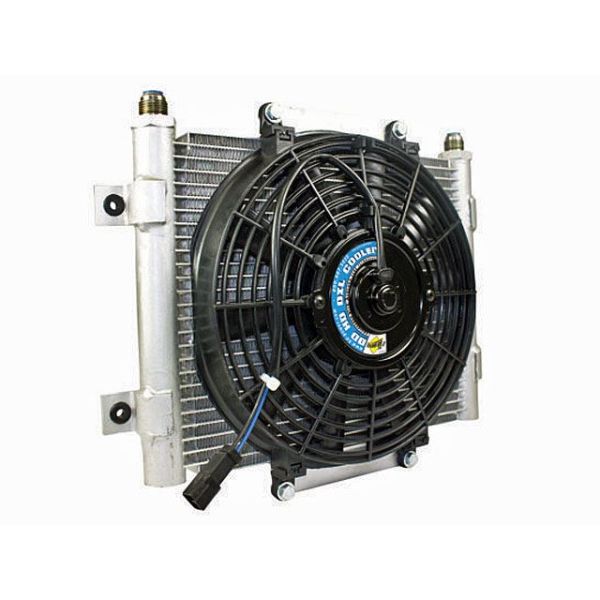

BD Diesel Xtrude Trans Cooler with Fan 5.5 inch
Found it for less but value our service?
Details
22% more cooling over other designs
200 Micro Extruded passages
Large surface area to transfer heat for external air flow cooling
Turbulent oil flow design promotes a more complete cooling
Large 5/8-inch ports prevents inlet/outlet restriction
Furnace brazed rails have been tested to 300psi of pressure
80-watt, 10-inch, 800 CFM electric fan
33,930 BTU/HR and in excess of 30,000 GVW!
Motor is IP54 with 65% duty cycle
Cooler Assembly Only
Warranty
Parts
12-Months
24,000 Miles
Note
Intended to be used in conjunction with factory transmission coolers and not as stand-alone units
Exceeding the duty cycle may result in voiding the warranty
More Information
| Part Number | 1300611 |
|---|---|
| Brand | BD Diesel |
| Type of Part | Cooling |
| Engine Fitment | Powerstroke 7.3L |
| Length | 10.0 |
| Width | 18.0 |
| Height | 13.0 |
| Weight | 12.000000 |
