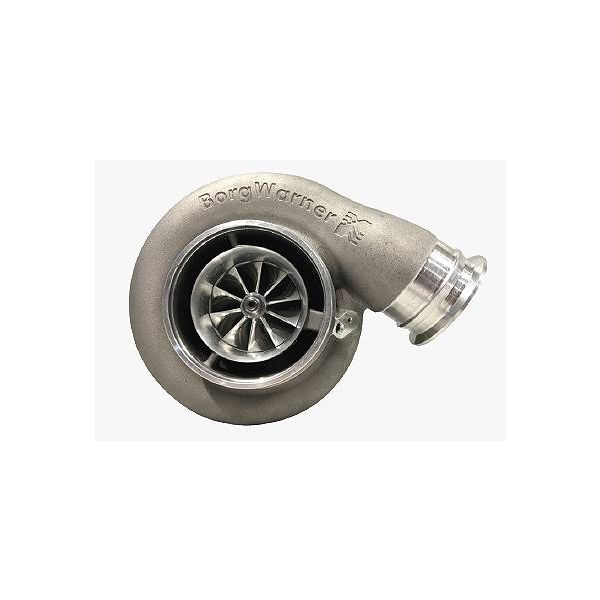

Borg Warner S480SX-E – 80mm Enhanced S400SX-E 11096 - 14009097010
Utilizing the latest generation 80.30mm billet EFR compressor wheel aerodynamics with uprated 360 degree thrust assemblies, the all new ‘SX-Enhanced’ turbos redefine performance and value for modern turbochargers.
This proven design is packaged in a purpose built SX-E compressor housing with ported-shroud inlet and speed sensor port. It is paired with traditional Airwerks 96mm Inconel Turbine and Flexible Housing options. The brand new 80.30mm S400SX-E Turbocharger from Borg Warner is the 4th largest T6 turbo in the Airwerks lineup. Ideal for applications which require more airflow than the Garrett GTX45R or 76mm S400SX, but also want better fitment than most T6 turbos. Higher airflow rates make this an excellent match for high-boost and high-power 80mm drag racing applications. Thermals are taken care of by an Oil-Cooled Journal Bearing only.
Compressor Specifications:
Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Wheel OD (Exducer): 110.00mm
Compressor Wheel Inducer: 80.30mm
Max Flow Rate: 138 lb/min
Max Recommended Turbo Shaft Speed: 97406 RPM
Compressor Housing Connections:
Inlet: 5.5″ Hose Coupler
Outlet: 3.5″ Hose Coupler
Turbine Specifications:
Turbine Type: Inconel S400SX Turbine Wheel
Turbine Wheel OD: 96mm
Housing Material: D5S sandcast
Housing Size and A/R ratio: S400SX-E 11096 (S480SX-E) is available in four (4) different turbine housing configurations:
1.15 A/R T6 Twin Scroll
1.32 A/R T6 Twin Scroll
1.45 A/R T6 Twin Scroll
1.58 A/R T6 Twin Scroll
Turbine Outlet: 5.75″ Marmon
BorgWarner SX-E Turbo Features:
Available as a complete turbo -or- Supercore (no turbine housing) to retrofit existing Airwerks installations.
Forged milled compressor wheels with Optimized compressor blade aerodynamics
All-new severe duty 360 degree thrust bearing
Compressor cover integrated speed sensor port and pre-machined boost port
Flexible compressor cover outlet options: coupler or vband
Interchangeable with existing Airwerks turbine housings for plug-and-play upgrades
More Information
| Part Number | 14009097010 |
|---|---|
| Part Brand | BorgWarner |
| Type of Part | SX-E Series |
| Length | 18 |
| Width | 18 |
| Height | 14 |
| Weight | 45.000000 |
