Borg Warner S488SX-E – 88mm Enhanced S400SX-E 11096
Found it for less but value our service?
Details

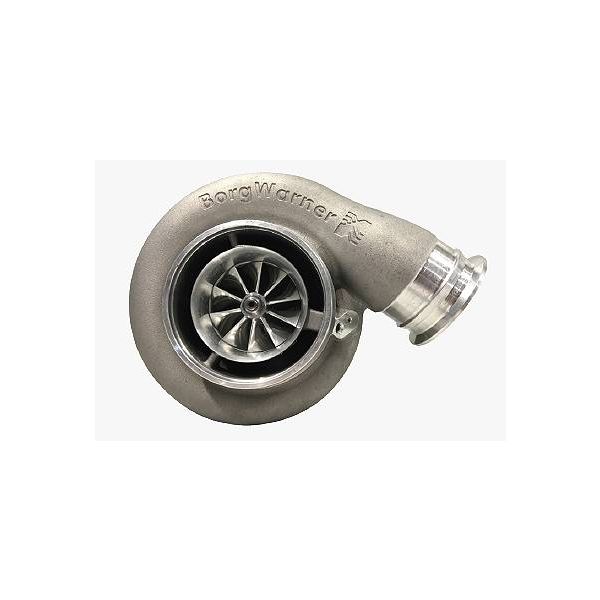

Borg Warner S488SX-E – 88mm Enhanced S400SX-E 11096 - 14009097008
Utilizing the latest generation 87.93mm billet EFR compressor wheel aerodynamics with uprated 360 degree thrust assemblies, the all new ‘SX-Enhanced’ turbos redefine performance and value for modern turbochargers.
This proven design is packaged in a purpose built SX-E compressor housing with ported-shroud inlet and speed sensor port. It is paired with traditional Airwerks 96mm Inconel Turbine and Flexible Housing options. The brand new 87.93mm S400SX-E Turbocharger from Borg Warner is the 3rd largest T6 turbo in the Airwerks lineup. Ideal for applications which require more airflow than the Garrett GTX45R or 76mm S400SX, but also want better fitment than most T6 turbos. Higher airflow rates make this an excellent match for high-boost and high-power 88mm drag racing applications. Thermals are taken care of by an Oil-Cooled Journal Bearing only.
Compressor Specifications
Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Wheel OD (Exducer): 110.00mm
Compressor Wheel Inducer: 87.93mm
Max Flow Rate: 162 lb/min
Max Recommended Turbo Shaft Speed: 605 m/s
Compressor Housing Connections:
Inlet: 5.5″ Hose Coupler
Outlet: 3.5″ V-Band or Hose Coupler
Turbine Specifications
Turbine Type: Inconel S400SX Turbine Wheel
Turbine Wheel OD: 96mm
Housing Material: D5S sandcast
Housing Size and A/R ratio: S400SX-E 11096 (S488SX-E) is available in four (4) different turbine housing configurations:
1.15 A/R T6 Twin Scroll
1.32 A/R T6 Twin Scroll
1.45 A/R T6 Twin Scroll
1.58 A/R T6 Twin Scroll
Turbine Outlet: 5.75″ Marmon
BorgWarner SX-E Turbo Features:
Available as a complete turbo -or- Supercore (no turbine housing) to retrofit existing Airwerks installations.
Forged milled compressor wheels with Optimized compressor blade aerodynamics
All-new severe duty 360 degree thrust bearing
Compressor cover integrated speed sensor port and pre-machined boost port
Flexible compressor cover outlet options: coupler or vband
Interchangeable with existing Airwerks turbine housings for plug-and-play upgrades
More Information
| Part Number | 14009097008 |
|---|---|
| Brand | BorgWarner |
| Type of Part | SX-E Series |
| Length | 18 |
| Width | 18 |
| Height | 14 |
| Weight | 45.000000 |
