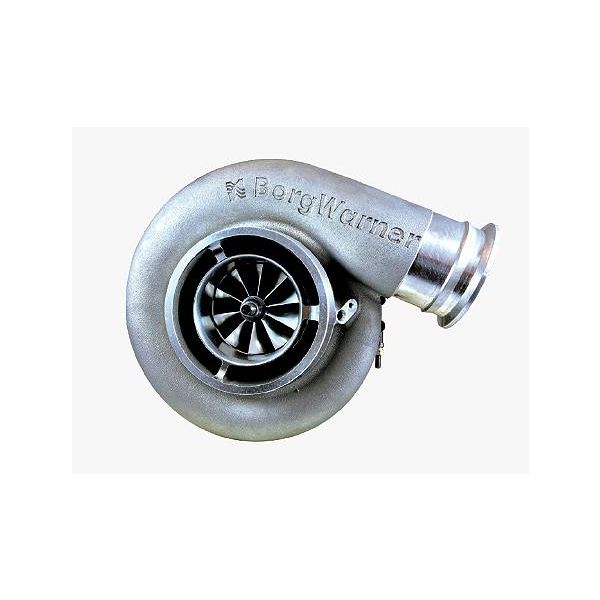

Borg Warner S594SX-E – 94mm Enhanced S500SX-E 120110 - 15009097002
Utilizing the latest generation 93.80mm billet EFR compressor wheel aerodynamics with uprated 360 degree thrust assemblies, the all new ‘SX-Enhanced’ turbos redefine performance and value for modern turbochargers.
This proven design is packaged in a purpose built SX-E compressor housing with ported-shroud inlet and speed sensor port. It is paired with traditional Airwerks 110mm Inconel Turbine and Flexible Housing options. The brand new 93.80mm S500SX-E Turbocharger from Borg Warner is the largest T6 turbo in the Airwerks lineup. Higher airflow rates make this an excellent match for high-boost and high-power 94mm drag racing applications. Thermals are taken care of by an Oil-Cooled Journal Bearing only.
Compressor Specifications
Compressor Type: Forged-Milled Wheel (FMW) Extended Tip
Compressor Wheel OD (Exducer): 120.00mm
Compressor Wheel Inducer: 93.80mm
Max Flow Rate: 187 lb/min
Max Recommended Turbo Shaft Speed: 607 m/s
Compressor Housing Connections:
Inlet: 6″ Hose Coupler
Outlet: 3.5″ V-Band or Hose Coupler
Turbine Specifications
Turbine Type: Inconel S500SX Turbine Wheel
Turbine Wheel OD: 110mm
Housing Material: D5S sandcast
Housing Size and A/R ratio: S500SX-E 120110 (S594SX-E) is available in eight (8) different turbine housing configurations:
0.85 A/R T6 Single Scroll
1.00 A/R T6 Single Scroll
1.15 A/R T6 Single Scroll
1.30 A/R T6 Single Scroll w/ 0.50″ Longer Discharge
1.15 A/R T6 Twin Scroll
1.45 A/R T6 Twin Scroll 3.62″ Centerline
1.45 A/R T6 Twin Scroll 4.25″ Centerline
1.60 A/R T6 Twin Scroll
Turbine Outlet: 5.75″ Marmon
BorgWarner SX-E Turbo Features:
Available as a complete turbo -or- Supercore (no turbine housing) to retrofit existing Airwerks installations.
Forged milled compressor wheels with Optimized compressor blade aerodynamics
All-new severe duty 360 degree thrust bearing
Compressor cover integrated speed sensor port and pre-machined boost port
Flexible compressor cover outlet options: coupler or vband
Interchangeable with existing Airwerks turbine housings for plug-and-play upgrades
More Information
| Part Number | 15009097002 |
|---|---|
| Part Brand | BorgWarner |
| Type of Part | SX-E Series |
| Length | 18 |
| Width | 18 |
| Height | 15.0 |
| Weight | 55.000000 |
