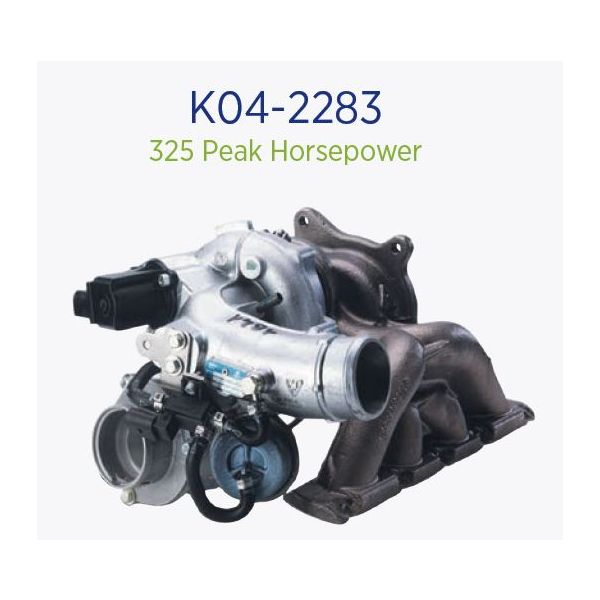

BorgWarner K04 2.0TFSI Turbo Upgrade

SKU:
53049880064
Views: 1
Qty

Please complete product configuration
Details

BorgWarner K04 2.0TFSI Turbo Upgrade 2004-2015 Audi A4 2.0T - 53049880064

The electrical recirculation valve, which is also integrated into the compressor casing, guarantees fast response times when closing the throttle valve. The use of a "latest generation" turbine wheel helps increase the efficiency of the turbocharger significantly, while optimized thermodynamics have led to further improvements in fuel consumption and transient behavior, i.e. the acceleration of the engine at full throttle. The original turbo has electronic pop-off valve integrated into comp/hsg, this upgrade turbo does not. External pop-off valve has to be fitted. Moreover, K04-064 has a larger compressor housing discharge.

Turbo Features
◾High-temperature alloy turbine housing
◾Extended tip compress wheel
◾Water cooled bearing housing

Additional Information:
◾Max warm oil pressure: 5 bar (73.5psi)
◾Max cold oil pressure: 8 bar (118psi)
◾When starting a fresh engine build or in extremely cold climates - oil pressure must reach 0.5bar (7.2psi) within 4 seconds maximum.
◾Do not load the engine with full boost and WOT until full operating oil pressure is present
◾Do not load the engine with full boost and WOT if any boost leaks are present (this can result in turbocharger overspeed)

More Information
Part Number 53049880064
Type of Part Turbo Upgrades
Engine Fitment 2.0 TFSI
Length 22
Width 15
Height 15
Weight 30.000000
