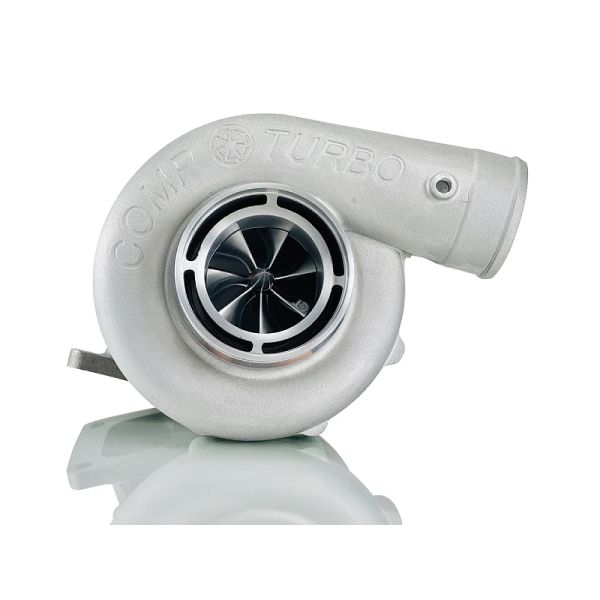

Comp CTR4002H-6875 Air Cooled 1.0 Triple Ball Bearing Turbo - 1150HP
TAGS: Comp CTR4002H-6875 Air Cooled 1.0 Triple Ball Bearing Turbo - 1150HP, 1.5L - 6.0L, Air Cooled, No Oil Lines, No Water Lines, Triplex BBB System, 4002004-H, 4002105, 4002814, 4002964, 4002104, 4002114, 24 Month Warranty
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details
Comp CTR4002H-6875 Air Cooled 1.0 Triplex Triple Ball Bearing Turbo - 1150HP
Comp CTR4002H-6875 Turbo Features:
• NOW with a 24 Month Warranty
• Titanium Bullet Nose
• 99% Mechanical Efficiency
• Fully Rebuildable/Upgradeable
• No Oil or Water Lines Required
• Anti-Surge Compressor Housing
• Billet Aluminum Bearing Housing
• Can Be Mounted In Any Orientation
• Inconel 713C 10 Bladed Turbine Wheel
• Patented TRIPLEX CERAMIC™ Ball Bearing Air Cooled System
• NEW 7/14 Vane Billet Slim Hub Extended Tip Compressor Wheel
Comp CTR4002H Compressor Wheel SPECs:
Inducer: 68mm / Exducer: 102mm
Comp CTR4002H Turbine Wheel SPECs:
Inducer: 82mm / Exducer: 75mm
Comp CTR4002H Compressor Housing SPECs:
H Cover - Inlet: 4" / Outlet: 3" / A/R: .85
Comp CTR4002H Turbine Housing Options:
(4002105) 1.00 A/R Stainless Steel V-Band Inlet & Outlet
(4002814) .81 A/R T4 Inlet Single Entry 3 5/8 V-Band
(4002964) .96 A/R T4 Inlet Single Entry 3 5/8 V-Band
(4002104) 1.00 A/R T4 Inlet Twin Scroll 3 5/8 V-Band
(4002114) 1.15 A/R T4 Inlet Twin Scroll 3 5/8 V-Band
Apllicable Part Numbers: 4002004-H, 4002105, 4002814, 4002964, 4002104, 4002114
Lubrication is essential for turbochargers which rotate at extremely high speeds. The use of engine oil to lubricate turbocharger bearing systems has long been the standard, but not without its limitations and inconveniences. Oil lubricated systems offer limited mounting options where oil must be gravity fed back into the engine unless incorporating expensive and complicated scavenging systems. Oil lubricated systems are also susceptible to contaminants from engine wear and are susceptible to leaking and smoking. These factors served as motivation to remove the use of engine oil from turbocharger bearing systems, thereby eliminating the problems associated. Comp Turbo's innovative design and technology led to the development and introduction of the world's first production oil-less turbocharger! The patented CTR Oil-Less Turbochargers employ a version of the Triplex Ceramic triple ball bearing system where bearings are lubricated by a proprietary high-quality non-channeling grease. The bearing housing of the Air-Cooled model incorporates an internal air passage from behind the compressor wheel for cooling in place of a water jacket. Without the need for oil or water lines, and a Zerk fitting for easy servicing, the CTR Air-Cooled Triplex Ceramic Turbochargers are the ultimate choice for low, mid, or remote mount combinations. Comp Turbo ball bearing turbochargers feature a patented triple ball bearing design boasting a 99% mechanical efficiency! Resulting in a faster transient response over the industry standard dual ball bearing system due to minimized friction losses. Dramatically improving response times and maximizing power output! Our patented Triplex Ceramic bearing system is housed within a billet aluminum housing making our turbochargers an average of 5 to 12 pounds lighter than others! Our complete line of turbochargers is proudly made in the USA and feature our latest R-Line technology! Consisting of the CTR 7/14 veined billet slim hub extended tip compressor wheel and CTR slim hub lightweight turbine wheel, our most advanced rotor technology yet!
More Information
| Part Number | 4002004-H, 4002105, 4002814, 4002964, 4002104, 4002114 |
|---|---|
| Part Brand | Comp Turbo |
| Type of Part | Turbo Chargers |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 35.000000 |
