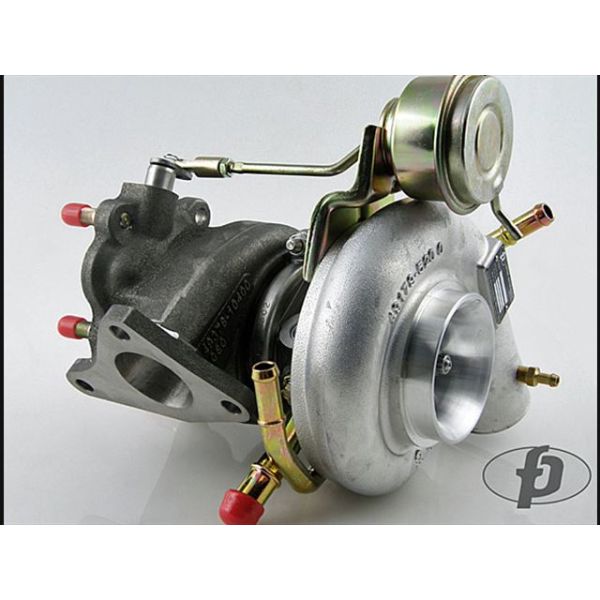

FP GREEN Journal Bearing Turbocharger
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details
Subaru Green HTZ
Compressor wheel - 76HTZ
Flow rating - 61LB per minute
CW Measurements - 54.8MM Inducer / 76MM Exducer
TW Measurements - 67.3MM Inducer / 58.8MM Exducer
Compressor Housing - 60MM Small Inlet or 84MM FAP Cover
Turbine Housing - FP 8CM Subaru Turbine Housing
CHRA - FP Journal Bearing
Oil Line - Included
Please read below to determine which oil line fits your application.
We offer two different types of oil lines that will fit most WRX/STI year models. However due to part number changes year to year and make to make we can not solidly identify which line you need. So below is a description of the lines and instructions on how to determine which one you'll need for your application. These are not made to work on anything other than Impreza WRX/STIs and we do not know if they will work on other models such as Legacy and Outbacks.
Type 1 - This line is to be used if at the oil feed location off the back of the head only feeds the turbo. See the diagram on the right below, if you have that type of oil line you will use the Type 1 line. This was formally known as an non-AVCS line.
Type 2 - This line is to be used if at the oil feed location off the head splits and feeds the turbo and the AVCS solenoid. See the diagram on the left below, if you have that type of oil line you will use Type 2 line. This was formally known as the AVCS Line.
Free Subaru Gasket set with purchase of turbo!
84MM FAP Cover Requires TGV Delete to fit in stock location
Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger we cannot guarantee a delivery date or ETA
Free Subaru Gasket set with purchase of turbo!
Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger we cannot guarantee a delivery date or ETA.
More Information
| Part Number | 2025094, 2025090 |
|---|---|
| Part Brand | Forced Performance |
| Type of Part | Turbo Upgrades |
| Engine Fitment | EJ20, EJ25 |
| Length | 12.0 |
| Width | 12.0 |
| Height | 12.0 |
| Weight | 35.000000 |
