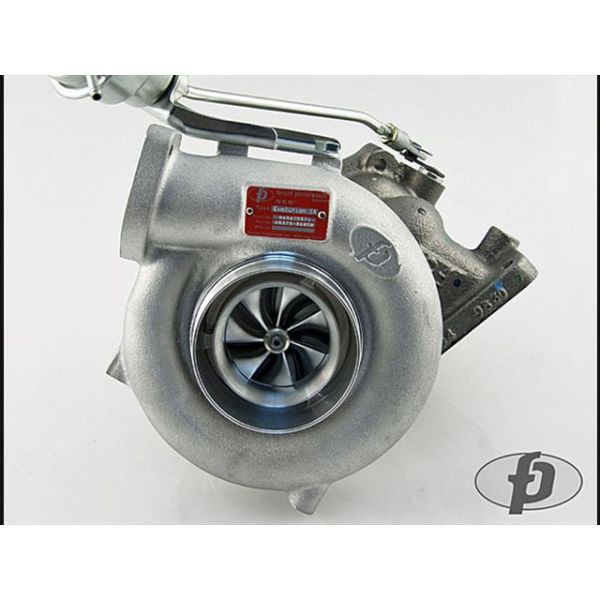

FP RED Journal Bearing Turbocharger

SKU:
2005030
Views: 1
Qty

Please complete product configuration
Details

EVO IX JB Red:
•Compressor wheel - 76HTZ
•Flow rating - 59LB per minute
•CW Measurements - 54.8MM Inducer / 76MM Exducer
•TW Measurements - 67.3MM Inducer / 58.8MM Exducer
•Compressor Housing - 84MM Flow Advancement Port Cover
•Turbine Housing - FP Stainless EVO 9 Turbine Housing
•CHRA - FP Journal Bearing
•Oil Line - Not Included - Required for proper lubrication.

Now with the updated HTZ Aero!

HTZ represents an increase of 5-7% in choke flow over the range of compressor sizes as well as an increase in maximum tip velocity giving you an even wider operating range for your turbocharger when pushing the limits of flow and choke flow for your turbocharger.

All EVO 9 turbos will now come standard with our new cast stainless turbine housing. This turbine housing has been designed to maximize flow while not sacrificing spool characteristics. It has a 3" outlet and has a TiAL MV-S waste gate flange machined directly onto the housing.

The FP EVO Stainless Turbine Housing was designed for race applications where the turbocharger would be operating above 20psi. Attempting to operate below 20PSI can result in boost creep in some applications.

Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger we cannot guarantee a delivery date or ETA. By purchasing this turbo you are agreeing that you have read any and all technical documents associated with the turbocharger.

More Information
Part Number 2005030
Brand Forced Performance
Type of Part Turbo Upgrades
Engine Fitment 4G63
Length 12.0
Width 12.0
Height 12.0
Weight 35.000000
