FP6875 DIY LS Race Turbo Bundle - 700HP+
Found it for less but value our service?
Details

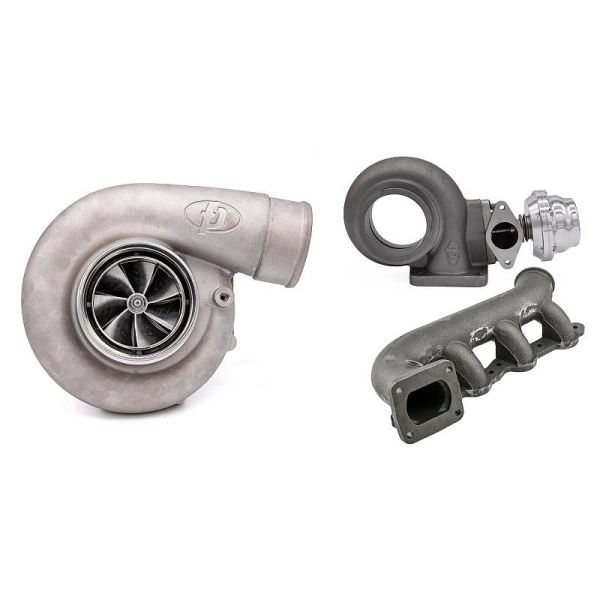

Turbo LS 4.8/5.3/6.0 DIY FP6875 Performance Package by Forced Performance, Tial Wastegate, LS CAST Turbo Manifold, 700-900HP
This is a great all in one solution for an affordable turbo LS setup! This has been run with the integrated F38 on FPs shop truck for months from 7-16psi with ZERO control issues. These will offer a CNC wastegate port hole for you to use for optimal flow. Just bolt the gate on and you are in business.
- FP6875 Race Turbocharger with integrated F38 Flange .81 or .96 A/R
- TiAL F38 Wastegate/6psi spring
- FP LS Log Manifold
- 1/8npt-4an Oil Inlet Fitting
- Stainless Downpipe Flange and Stainless Downpipe Clamp
- CHRA - FP Journal Bearing
- Flow rating - 100lb/min
- CW Measurements - 68MM Inducer
- TW Measurements - 75MM Exducer
- Compressor Housing - 4" Inlet and 3" Outlet
- Turbine Housing - T4 Open .81 or .96 A/R
- Turbine Outlet Flange - 3 5/8" V-Band discharge
- CHRA - FP Journal Bearing
This LS Turbo package is offered in two different T4 turbine housings, a .81 A/R and a .96 A/R open. We recommend the .81 for smaller motors or twin setups, while the .96 responds very well on a larger motor such as a 5.3 or such applications that use a larger cam/converter than stock.
More Information
Brand | Forced Performance |
---|---|
Type of Part | Turbo Kits |
Engine Fitment | 4.8L/5.3L/6.0L |
Length | 28 |
Width | 14 |
Height | 14 |
Weight | 50.000000 |
