Garret® G Series Turbochargers

If you’re looking for the latest, most advanced turbocharger technology—look no further than the Garrett® G Series. These incredible turbochargers provide enthusiasts with an extensive range of performance-enhancing features for 2.0L to 8.0L platforms and ranging from 300HP up to 3000HP in a single turbo configuration. The G series includes standard and reverse rotation options with many housing configurations—so finding the most suitable turbocharger for your application is simple.

G Series Turbochargers have a faster response, higher output, and superb airflow. As a result, the G-series provides airflow capable of offering over 550 horsepower per turbocharger in a compact package like the G25-550 or G25-660. The state-of-the-art technology and masterful engineering mean you’ll enjoy 20% more horsepower and a far quicker spool.

So whether you’re building a single or twin turbo setup, these cutting-edge turbochargers have the performance to place you far ahead of the competition! You’ll enjoy better performance, efficiency, and technology with the G Series.

G25-550 through G35-1050 with Mirror Image Options
Garrett G25-550 48mm Turbo
Standard Rotation - 300-550HP
Garrett G25-550 48mm Turbo
Reverse Rotation - 300-550HP

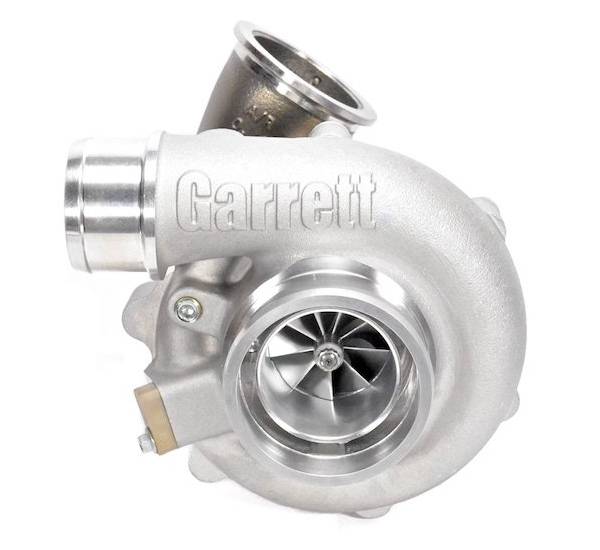

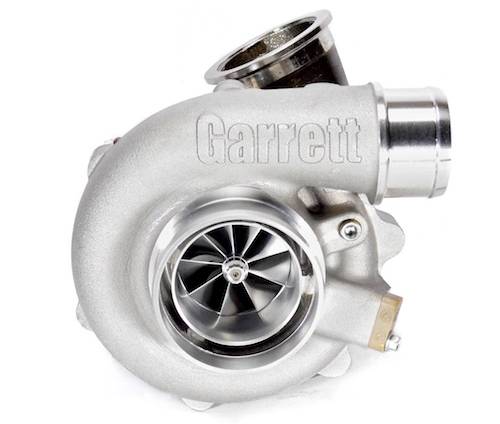

Garrett G25-550 Standard Rotation G Series Turbocharger Garrett G25-550 Reverse Rotation G Series Turbo
Garrett G25-660 54mm Turbo
Standard Rotation - 350-660HP
Garrett G25-660 54mm Turbo
Reverse Rotation - 350-660HP
Garrett G25-660 Standard Rotation G Series Turbo Garrett G25-660 Reverse Rotation G Series Turbo
Garrett G30-660 54mm Turbo
Standard Rotation - 350-660HP
Garrett G30-660 54mm Turbo
Reverse Rotation - 350-660HP

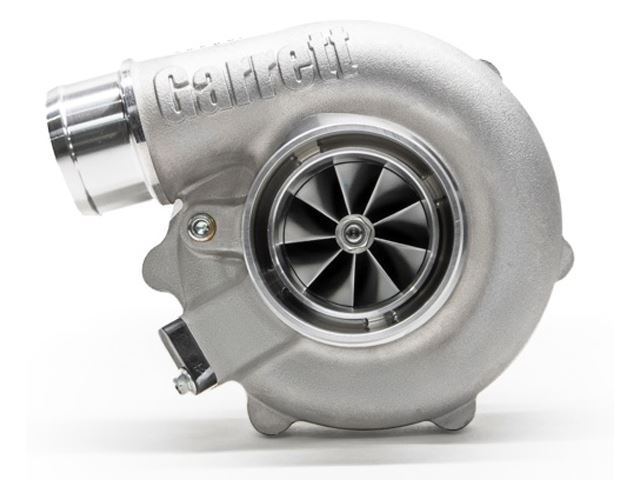

Garrett G30-660 Standard Rotation G Series Turbo Garrett G30-660 Reverse Rotation G Series Turbo
Garrett G30-770 58mm Turbo
Standard Rotation - 475-770HP
Garrett G30-770 58mm Turbo
Reverse Rotation - 475-770HP
Garrett G30-770 Standard Rotation G Series Turbo Garrett G30-770 Reverse Rotation G Series Turbo
Garrett G30-900 62mm Turbo
Standard Rotation - 550-900HP
Garrett G30-900 62mm Turbo
Reverse Rotation - 550-900HP
Garrett G30-900 Standard Rotation G Series Turbo Garrett G30-900 Reverse Rotation G Series Turbo
Garrett G35-900 62mm Turbo
Standard Rotation - 550-900HP
Garrett G35-900 62mm Turbo
Reverse Rotation - 550-900HP
Garrett G35-900 Standard Rotation G Series Turbo Garrett G35-900 Reverse Rotation G Series Turbo
Garrett G35-1050 68mm Turbo
Standard Rotation - 700-1050HP
Garrett G35-1050 68mm Turbo
Reverse Rotation - 700-1050HP
Garrett G35-1050 Standard Rotation G Series Turbo Garrett G35-1050 Reverse Rotation G Series Turbo



G40-900 through G45-1500 G Series Turbochargers
Garrett G40-900 62mm
Turbo - 700-1050HP
Garrett G40-1150 71mm
Turbo - 500-1150HP
Garrett G40-900 G Series Turbo Garrett G40-1150 G Series Turbo
Garrett G42-1200C 73mm
Turbo - 475-1200HP
Garrett G42-1200 73mm
Turbo - 475-1200HP

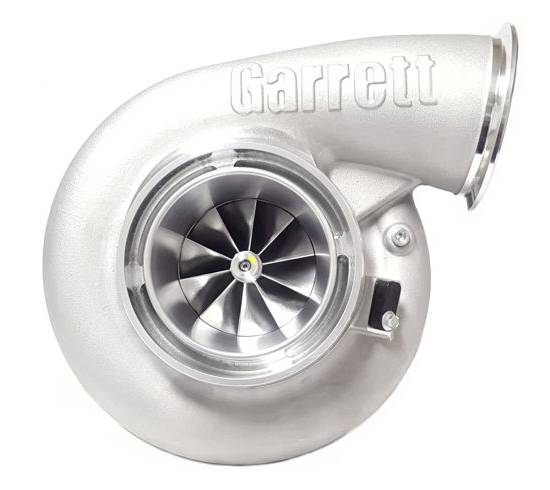

Garrett G42-1200C G Series Turbo Garrett G42-1200 G Series Turbo
Garrett G42-1450 79mm
Turbo - 525-1450HP
Garrett G45-1125 67mm
Turbo - 600-1125HP

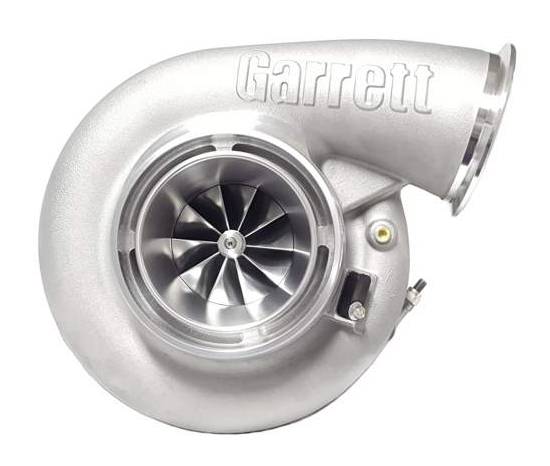

Garrett G42-1450 G Series Turbo Garrett G45-1125 G Series Turbo
Garrett G45-1350 72mm
Turbo - 650-1350HP
Garrett G45-1500 76mm
Turbo - 750-1500HP
Garrett G45-1350 G Series Turbo Garrett G45-1500 G Series Turbo



G55-1850 through G57-3000 G Series Turbochargers
Garrett G55-1850 85mm
Turbo - 1000-1850HP
Garrett G55-1950 88mm
Turbo - 1000-1950HP
Garrett G55-1850 G Series Turbo Garrett G55-1950 G Series Turbo
Garrett G55-2100 91mm
Turbo - 1000-2100HP
Garrett G55-2250 94mm
Turbo - 1000-2250HP
Garrett G55-2100 G Series Turbo Garrett G55-2250 G Series Turbo
Garrett G55-2450 98mm
Turbo - 1000-2450HP
Garrett G55-2650 102mm
Turbo - 1000-2650HP
Garrett G55-2450 G Series Turbo Garrett G55-2650 G Series Turbo
Garrett G55-2900 106mm
Turbo - 1000-2900HP
Garrett G57-2000 88mm
Turbocharger - 1400-2000HP
Garrett G55-2900 G Series Turbo Garrett G55-2650 G Series Turbo

The Garrett® G Series Top Features:

  • An advanced aerodynamics G Series Compressor Wheel for better performance.
  • The ultra-high flow G-Series turbine wheel.
  • Backplate and one-speed center housing for added durability.
  • Four water jacket ports for installation.
  • The option of standard and reverse rotation.
  • Pressure ports and fully machined speed sensors.
  • Stainless steel turbine housings for temperatures up to 11050° C or 1922° F.
  • Ball bearing CHRA rotating assembly for better performance.
  • Oil restrictor and water fittings.
  • Coolant fittings and oil feed.
  • A pre-tapped speed sensor port.
  • Twin piston rings on both sides of the wheel and reduced size bearing cartridge for a reduction in oil leakage and maximum durability.

The Garrett® G Series Turbine Wheel

The G Series turbine wheel includes cutting-edge ultra-high flow aerodynamics to boost response and improve flow. The technological improvements provide once unimaginable power levels by enhancing the spool and growing the frame size.

Garrett created the G Series turbine wheels with Mar-M super alloys so they can withstand up to 1050 celsius. In addition, the new turbine wheel has a peak efficacy of 74% and flows 15 to 20% more than GTX.

The Garrett® G Series Compressor Wheel

If you want to boost your maximum horsepower output, the new aerodynamic design of the G Series compressor wheel is your best friend. Its new sleek design increases the maximum horsepower output by up to 30%.

The aerodynamic design doesn’t just boost peak flow, but it also increases the power through its extensive operating RPM range. The compressor wheel increases airflow by up to 15% for 60mm and 30% for 67mm with impressive 79-80% efficacy. You can purchase the wheel in standard rotation or reverse rotation options.

The Garrett® G Series Turbine Housings

Garrett® G Series Turbine Housings come in stainless steel to ensure maximum durability; they can also withstand temperatures of up to 1050 celsius. In addition, they also include V-band CHRA to Turbine Housing interface to provide complete 360-degree rotation.

Garrett has designed the housings to be more compact, more efficient, and have maximum bypass port size to offer better boost control and minimize boost creep. Garret has made the turbine housings available in various configurations—including T25, open volute, and Vband—to ensure maximum choice.

Why The Garrett® G Series Is Perfect For You

Garret has smashed it out of the park with the G Series line. With the design and technological improvements, you won’t be disappointed by the incredible performance and efficiency offered by this series. Better still, the G Series has a durable and versatile design to deliver optimum performance long into the future.

The Garrett GTX Gen II Series Turbochargers are also an excellent option to boost performance and overall horsepower.

It’s time to experience it for yourself.
