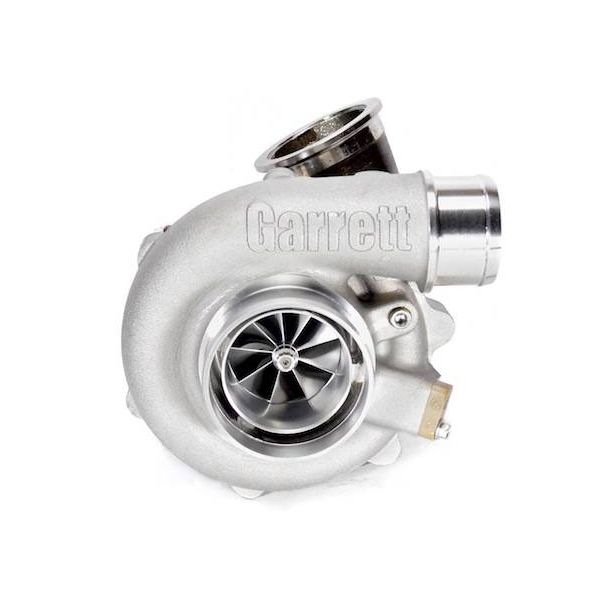

Garrett G25-550 G Series Ball Bearing Turbocharger .92AR V-Band EWG Turbine Housing - 871389-5005S, 858161-5002S, 740902-0068
"Spools like a 28, Powers like a 30"
In Stock, Shipping Now!
The Garrett G-Series G25-550 advanced small frame ball bearing turbocharger; including a Garrett stainless steel V-Band Inlet & V-Band Outlet .92 A/R turbine housing (Garrett Part #871389-5005S). 550HP from a small frame package!
Ultra High Flow G-Series Compressor Wheel
Revolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
Includes -4AN oil feed fitting and -6AN coolant/water fittings
Compressor Wheel Inducer: 48mm
Compressor Wheel Exducer: 60mm
Compressor Wheel Trim: 65
Compressor Housing Inlet: 3 Inch Diameter
Compressor Housing Outlet: 2 Inch Diameter
Compressor Housing A/R: .70
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 49mm
Turbine Wheel Trim: 84
Turbine Housing Inlet: 3 Inch O.D. V-Band
Turbine Housing Outlet: 3.55 inch O.D. V-Band
Includes Oil Feed (1mm) Restrictor Fitting to -4AN
Includes two Coolant Fittings to -6AN
Includes Turbine Housing Inlet & Outlet V-Band Clamps
Applicable Garrett Product Code(s): 871389-5005S, 858161-5002S, 740902-0068
THE ALL NEW GARRETT G SERIES TURBOCHARGERS
Garrett G Series Highlights:
*EVOLUTIONARY ULTRA HIGH FLOW G-Series Turbine Wheel
*Advanced aerodynamics G Series Compressor Wheel
*Compact Standard Package
*Standard & Reverse rotation (spins counterclockwise) options
*The Results: +20% More Horsepower & Quicker Spool!!!
Introducing the next evolution in performance, the Garrett G Series Turbochargers. The Garrett G Series combines the latest performance turbocharger technology and advanced aerodynamic designs. The result, is the highest horsepower small frame turbocharger!!!
Garrett G Series Turbine Wheel: By incorporating the latest and advanced ULTA HIGH FLOW aerodynamic designs within the Garrett G Series Turbine Wheel, G Series models offer previously unimagineable power levels by frame size and improvements in spool! Made from Mar-M super alloy, the G Series Turbine Wheel withstands up-to 1050 degrees Celsius; +200 degrees Celsius over inconel turbine wheels.
Garrett G Series Compressor Wheel: Forged fully-machined compressor wheel and new aerodynamics design increases maximum horsepower output, up to +30%. The G-Series aero design not only increases peak flow but higher power levels within a large operating RPM range.
Garrett G Series Additional Features:
*Includes oil feed and coolant fittings
*Reduced size bearing cartridge and twin piston rings on both sides of the wheel assembly for increased durability and reduction in oil leakage.
*Pre-tapped speed sensor port and boost pressure signal port.
*NEW compact design bearing housing and CHRA to Turbine Housing V-band Connection.
*NEW and improved oiling and cooling system.
|Part Number||871389-5005S, 858161-5002S, 740902-0068|
|Type of Part||G Series|
