Reverse Rotation Garrett G30-900 G Series - 1.21AR V-Band EWG

880694-5003S, 740902-0099
Views: 1
Special Price $2,818.39 Regular Price $3,315.75

TAGS: Garrett G Series, G30-900 1.21ar, V-Band In/Out, Reverse Rotation, External Wastegate, 900HP, 880694-5003S, 740902-0099

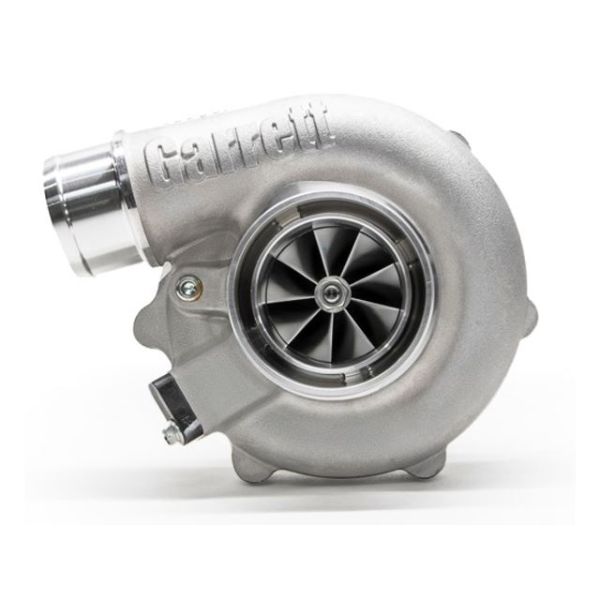

Garrett G30-900 G Series REVERSE ROTATION Ball Bearing Turbocharger 1.21AR V-Band/V-Band Turbine Housing - 880694-5003S, 740902-0099

The GarrettĀ® G30-900 reverse rotation turbo assembly kit with 4" inlet and 2" outlet compressor housing and 1.21 A/R O/V, v-band in/out turbine housing.

Ultra High Flow G-Series Compressor Wheel:
Revolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating
Includes -4AN oil feed fitting and -6AN coolant/water fittings

Compressor Wheel Inducer: 62mm
Compressor Wheel Exducer: 76mm
Compressor Wheel Trim: 65
Compressor Housing Inlet: 4 Inch Diameter
Compressor Housing Outlet: 2 Inch Diameter
Compressor Housing A/R: .72
Turbine Wheel Inducer: 60mm
Turbine Wheel Exducer: 55mm
Turbine Wheel Trim: 84
Turbine Housing Inlet: 3 Inch O.D. V-Band
Turbine Housing Outlet: 3.55 inch O.D. V-Band
Includes Oil Feed (1mm) Restrictor Fitting to -4AN
Includes two Coolant Fittings to -6AN
Includes Turbine Housing Inlet & Outlet V-Band Clamps

Applicable Garrett Product Code(s): 880694-5003S, 740902-0099, 880698-5016S

Garrett G Series Highlights:
*Advanced aerodynamics G Series Compressor Wheel
*Compact Standard Package
*Standard & Reverse rotation (spins counterclockwise) options
*The Results: +20% More Horsepower & Quicker Spool!!!

Introducing the next evolution in performance, the Garrett G Series Turbochargers. The Garrett G Series combines the latest performance turbocharger technology and advanced aerodynamic designs. The result, is the highest horsepower small frame turbocharger!!!

Garrett G Series Turbine Wheel: By incorporating the latest and advanced ULTA HIGH FLOW aerodynamic designs within the Garrett G Series Turbine Wheel, G Series models offer previously unimaginable power levels by frame size and improvements in spool! Made from Mar-M super alloy, the G Series Turbine Wheel withstands up-to 1050 degrees Celsius; +200 degrees Celsius over inconel turbine wheels.

Garrett G Series Compressor Wheel: Forged fully-machined compressor wheel and new aerodynamics design increases maximum horsepower output, up to +30%. The G-Series aero design not only increases peak flow but higher power levels within a large operating RPM range.

Garrett G Series Additional Features:
*Includes oil feed and coolant fittings
*Reduced size bearing cartridge and twin piston rings on both sides of the wheel assembly for increased durability and reduction in oil leakage.
*Pre-tapped speed sensor port and boost pressure signal port.
*NEW compact design bearing housing and CHRA to Turbine Housing V-band Connection.
*NEW and improved oiling and cooling system.

More Information
Part Number 880694-5003S, 740902-0099
Brand Garrett
Type of Part G Series
Length 15
Width 15
Height 15
Weight 25.000000
G Series Horsepower Range G30-900 62mm (550-900HP)
