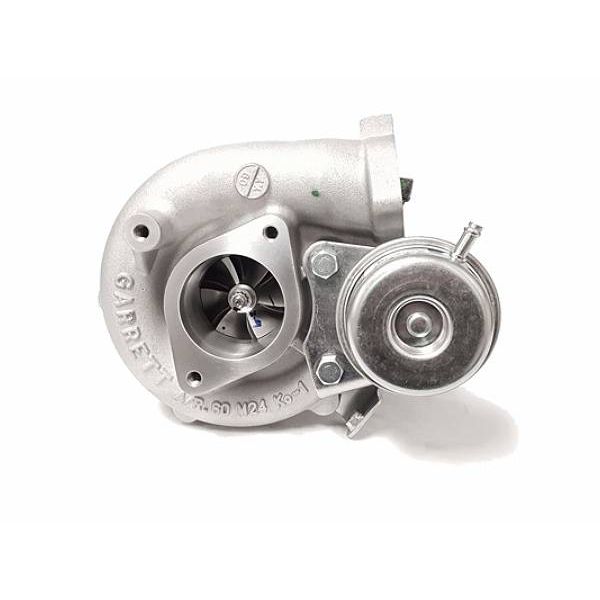

Garrett GT2560R BB Turbo

SKU:
836023-5004S
Views: 13
Qty

Please complete product configuration
Details

Garrett GT2560R (GT28R) Ball Bearing Turbo

Garrett Free Shipping



The GT2560R is a perfect turbo for a 250-310hp power range. Suitable for any 1.4 - 2.2L Motor. It also features a internal wastegate for a simple installation.

The GT2560R has great spool times & power response. Due to Garrett's GT wheel design and Dual Ball Bearing center cartridges. These turbos are also water cooled which allows for the turbo to operate at lower temperatures. Which in turns makes these turbos very reliable.

COMPRESSOR INFORMATION:
- Compressor Wheel: 60mm w/ 60 trim
- Compressor Map

COMPRESSOR HOUSING OPTIONS:
- Standard GT2560R (aka GT28R) .60 A/R
- Alternate compact GT2554R (aka GT25R) .80 A/R
- Alternate Hose Connection - 3" Inlet/ 2" Outlet

TURBINE INFORMATION:
- Turbine Wheel: 53mm w/ 62 trim
- Turbine Map

TURBINE HOUSING OPTIONS:
- T25 Inlet, 5 bolt GT outlet, internally gated, .64 A/R and includes internal wastegate actuator (DEFAULT OPTION).
- V-band inlet (machined from T25 flange), 5 bolt GT outlet, internally gated, .64 A/R and includes internal wastegate actuator (Additional +$50.00).
- V-band inlet, V-band outlet, externally gated, .64 A/R and NO internal wastegate actuator and bracket.
- T3 Inlet; 5 bolt (Ford style) outlet, .48 A/R, and configured as internal or external wastegate. NO internal wastegate actuator and bracket.

NOTE: Internal wastegate is NOT included with externally gated v-band inlet and v-band outlet turbine housing.

Applicable Garrett Part Numbers: 466541-5001S, 466541-0001, 466541-1, 466541-5004S, 466541-0004, 466541-4, 836023-5004S

Normally In Stock, Shipping Daily!

TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.

More Information
Part Number 836023-5004S, 466541-5001S, 466541-5004S
Part Includes
Brand Garrett
Type of Part GT Ball Bearing
Length 12
Width 10
Height 10
Weight 20.000000
