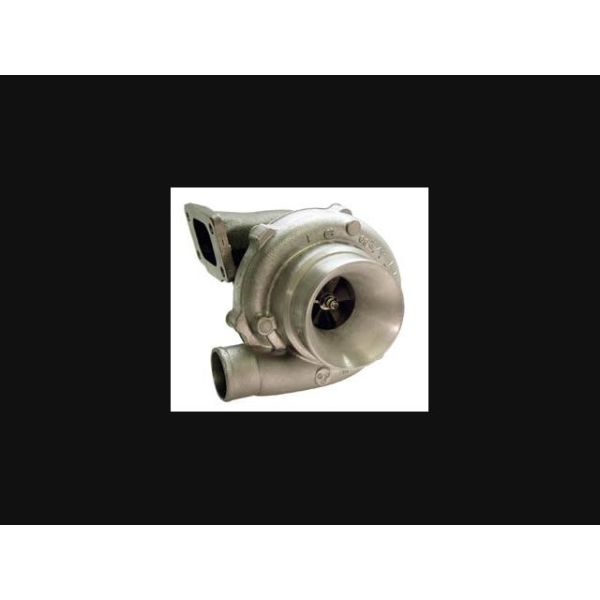

Garrett GT3071R Ball Bearing Turbo

SKU
700177-5023S, 700177-23, 836000-5002S
Views: 0
Special Price $1,049.85 Regular Price $1,352.21
Bread Checkout



Garrett GT3071R Ball Bearing Turbo

Garrett Free Shipping

Turbo is the newest addition to the Garrett Ball Bearing Line up. It fills in the requirements for small displacement 4 cyl. engines and has a excellent response characteristics. It spools up 1,000 RPM sooner than the older GT30R. Compressor housing is T04E frame size with 2.00 outlet. Compressor inlet is available with 2.75 or 4.00 inlet. Standard (default) turbine housing is first one listed (T3 inlet with 3" 4 bolt "GT" conical discharge flange) and various other turbine housing options are available for easy retrofit into applications where your turbine housing type is already dictated by your current turbo. Please note: Turbine housing choice will determine final calculated cost of turbo in the shopping basket.

Turbine:
-Wheel: 60mm w/ 84 trim
-Housing: .63 ar, .82 ar, 1.06 ar

Compressor:
-Wheel: 71mm w/ 56 trim
-Housing: .50 ar
-Maps

This is the full size GT3071R with the full size 60mm turbine wheel which is the same turbine wheel found on the full size GT3076R.

Applicable Garrett Part Numbers: 700177-5022S, 700177-5023S, 700177-0023, 700177-5023, 700177-23, 836000-5002S

Normally In Stock, Shipping Daily!

TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.

Turbine Housing Options
Price Inlet Outlet A/R Type
$150.00 Extra T3 4 Bolt GT 3" .63/.82/1.06 External Wastegate Garrett GT3582R T3 4 Bolt GT 3'' Outlet Turbine Housing
$150.00 Extra T3 V-Band GT 3" .63/.82/1.06 External Wastegate Garrett GT3582R T3 V-Band GT 3'' Outlet Turbine Housing
$150 Extra Divided T3 V-Band .78 External Wastegate Garrett GT3582R Divided T3 V-Band Turbine Housing
$150.00 Extra T3 5 Bolt .63/.82/1.06 Internal Wastegate Garrett GT3582R T3 5 Bolt Internal Wastegate Turbine Housing
No Extra Cost T3 4 or 5 Bolt .63/.82 External Wastegate Garrett GT3582R T3 4 Bolt Turbine Housing
No Extra Cost K24/K26 4 Bolt .63/.82 External Wastegate Garrett GT3582R K24/K26 4 Bolt Turbine Housing
$250.00 Extra Tial Stainless Steel V-Band V-Band .63/.82/1.06 External Wastegate Garrett GT3582R Tial Stainless Steel V-Band Turbine Housing
No Extra Cost T25 T31 V-Band .63/.82 External Wastegate Garrett GT3582R T25 V-Band Turbine Housing
No Extra Cost T25 5 Bolt .72 External Wastegate Garrett GT3582R T25 5 Bolt External Wastegate Turbine Housing
$150.00 Extra Undivided T4 V-Band 1.06 External Wastegate Garrett GT3582R Undivided T4 VBand Turbine Housing
$150.00 Extra Divided T3 V-Band .82/1.06 External Wastegate Garrett GT3582R Divided T4 VBand Turbine Housing
$150.00 Extra T3 Cosworth 3-Bolt .72 Internal Wastegate Cosworth Style T3 Internally Wastegated Exhaust Housing
$250.00 Extra Divided T3 GT V-Band .61/.83/1.01 External Wastegate/Ni-Resist Garrett GT3582R T3 V-Band GT 3'' Outlet Turbine Housing
$250.00 Extra Undivided V-Band V-Band .61/.83/1.01 External Wastegate/Ni-Resist Garrett GT3582R T3 V-Band GT 3'' Outlet Turbine Housing
$250.00 Extra Divided V-Band V-Band .61/.83/1.01 External Wastegate/Ni-Resist Garrett GT3582R T3 V-Band GT 3'' Outlet Turbine Housing

For CA Proposition 65 Warning: Click Here

More Information
Part Number700177-5023S, 700177-23, 836000-5002S
Part Includes

  • Turbine
    • Wheel: 60mm w/ 84 trim
    • Housing: .63ar, .86ar, 1.06ar
    • Ni-Resist Housing: .61ar, .83ar, 1.01ar
  • Compressor
    • Wheel: 71mm w/ 56 trim
    • Housing: .50ar

BrandGarrett
Filter by Type of PartGT Ball Bearing
Height10.0
Width12.0
Length14.0
