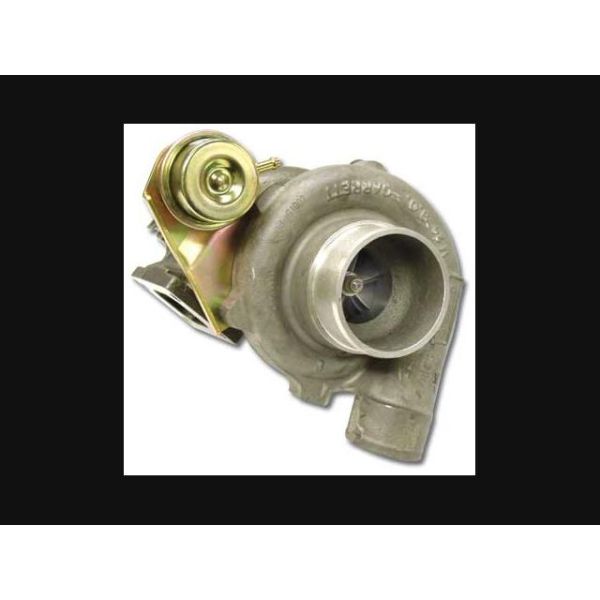

Garrett GT3076R WG C10 Turbo

In stock
SKU
700177-5010
Views: 0
Special Price $1,267.93 Regular Price $1,442.50
Bread Checkout


Garrett GT3076R WG C10 Turbo

Garrett Free Shipping


Specify .64 or .86 A/R Internally Wastegated T25 (GT28) style exhaust housing. Compressor wheel is 76mm 48 trim and turbine wheel is 56.5mm 84 trim. Garrett CHRA is 700177-5010. Compressor housing inlet is 3" and outlet is 2". Externally looks identical to GT28RS/GT2871R. Excellent choice for a very responsive 425HP capable turbo in a compact package.

Applicable Garrett Part Numbers: 700177-5010

Normally In Stock, Shipping Daily!

TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.

For CA Proposition 65 Warning: Click Here

More Information
Part Number700177-5010
Part Includes
  • Turbine
    • Wheel: 56.5mm w/ 84trim
    • Housing: .64 or .86 ar T25 flanged w/ GT28 5 bolt exit
    • Ni-Resist Housings: .61, .83, 1.01 ar V-Band toV-Band
  • Compressor
    • Wheel: 76mm w/ 48 trim
    • Housing: .60 ar
    • Inlet: 3"
    • Outlet: 2"
BrandGarrett
Filter by Type of PartGT Ball Bearing
Height10.0
Width12.0
Length14.0
