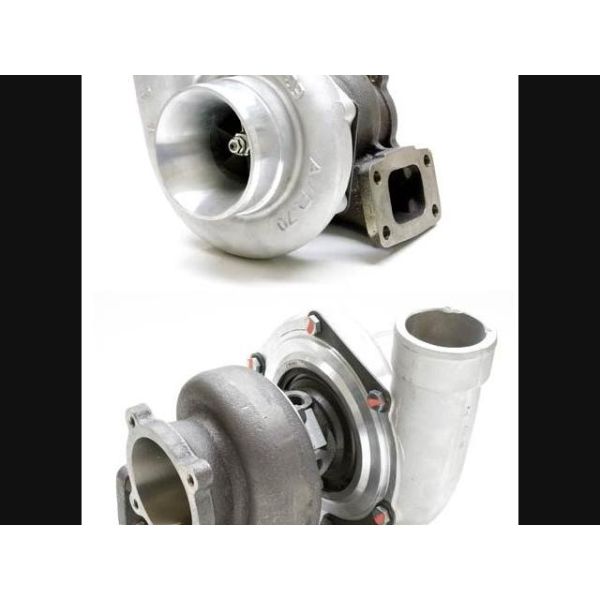

Garrett GT3082R (aka GT3040R) Ball Bearing Turbo
Dual Ball Bearing "GT30/GT40R" Turbo assembly. T3 style inlet flange with 4 bolt T31 style exit. This turbo incorporates the same exact GT40 compressor wheel found in the popular GT35/40R, but runs the smaller 60mm w/84 trim turbine wheel from the GT30R. Appropriate for smaller engine where the GT35/40R feels too big, but the high amount of compressor flow is needed for the desired HP and boost levels. Large T04S style compressor housing with 4.00 inlet and 2.50" outlet. This turbo has a flow capacity of about 600HP. Standard (default) turbine housing is first one listed (T3 inlet with 3" 4 bolt "GT" conical discharge flange) and various other turbine housing options are available for easy retrofit into applications where your turbine housing type is already dictated by your current turbo. Please note: Turbine housing choice will determine final calculated cost of turbo in the shopping basket.
Turbine:
-Wheel: 60mm w/ 84 trim
-Housing: .63 ar, .82 ar, 1.06 ar
Compressor:
-Wheel: 82mm w/ 56 trim
-Housing: .70 ar
Applicable Garrett Part Numbers: 700177-5014S, 700177-5014, 700177-14
Normally In Stock, Shipping Daily!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options | |||||
| Price | Inlet | Outlet | A/R | Type | |
| $150.00 Extra | T3 | 4 Bolt GT 3" | .63/.82/1.06 | External Wastegate |  |
| $150.00 Extra | T3 | V-Band GT 3" | .63/.82/1.06 | External Wastegate |  |
| $150 Extra | Divided T3 | V-Band | .78 | External Wastegate |  |
| $150.00 Extra | T3 | 5 Bolt | .63/.82/1.06 | Internal Wastegate |  |
| No Extra Cost | T3 | 4 or 5 Bolt | .63/.82 | External Wastegate |  |
| No Extra Cost | K24/K26 | 4 Bolt | .63/.82 | External Wastegate |  |
| $250.00 Extra | Tial Stainless Steel V-Band | V-Band | .63/.82/1.06 | External Wastegate |  |
| No Extra Cost | T25 | T31 V-Band | .63/.82 | External Wastegate |  |
| No Extra Cost | T25 | 5 Bolt | .72 | External Wastegate |  |
| $150.00 Extra | Undivided T4 | V-Band | 1.06 | External Wastegate |  |
| $150.00 Extra | Divided T3 | V-Band | .82/1.06 | External Wastegate |  |
| $150.00 Extra | T3 | Cosworth 3-Bolt | .72 | Internal Wastegate |  |
| $250.00 Extra | Divided T3 | GT V-Band | .61/.83/1.01 | External Wastegate/Ni-Resist |  |
| $250.00 Extra | Undivided V-Band | V-Band | .61/.83/1.01 | External Wastegate/Ni-Resist |  |
| $250.00 Extra | Divided V-Band | V-Band | .61/.83/1.01 | External Wastegate/Ni-Resist |  |
More Information
| Part Number | 700177-5014S, 700177-14 |
|---|---|
| Part Includes |
|
| Brand | Garrett |
| Type of Part | GT Ball Bearing |
| Horsepower Gains | 600 HP |
| Length | 14.0 |
| Width | 12.0 |
| Height | 10.0 |
| Weight | 35.000000 |
