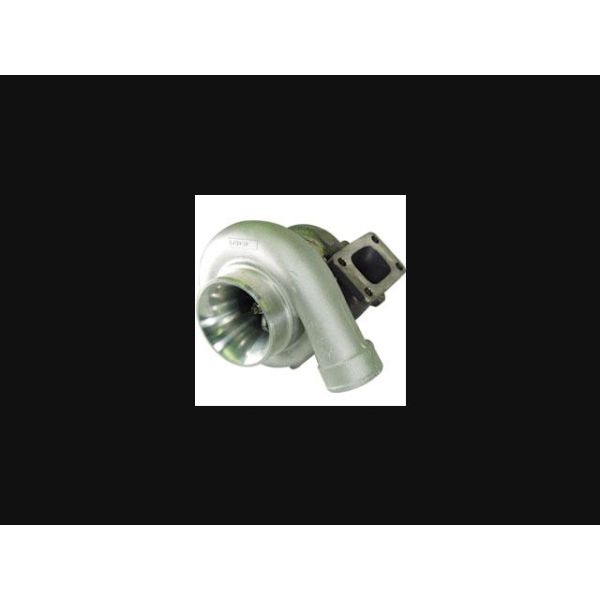

Garrett GT3582R (aka GT35-40R) Ball Bearing Turbo
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details
Garrett GT3582R (aka GT35-40R) Ball Bearing Turbo
Dual Ball Bearing GT35/GT40R Turbo assembly. T3 style inlet flange with default GT 4 bolt style exit. Large T04S style compressor housing with 4.00 inlet and 2.50" outlet. Hi HP 4-6 Cyl applications. This turbo has a flow capacity of about 600HP.
Turbine:
-Wheel: 68mm w/ 84 trim
-Housing: .63 ar, .82 ar, 1.06 ar
Compressor:
-Wheel: 82mm w/ 56 trim
-Housing: .70 ar
Applicable Garrett Part Numbers: 836005-5003, 714568-5001S, 714568-5002S, 714568-5003S, 714568-5007S, 714568-5008S, 714568-5009S, 714568-5010S, 714568-0001, 714568-0002, 714568-0003, 714568-1, 714568-2, 714568-3, 706451-5005S, 706451-5005, 706451-5
Normally In Stock, Shipping Daily!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options | |||||
| Price | Inlet | Outlet | A/R | Type | |
| No Extra | T3 | 4 Bolt GT 3" | .63/.82/1.06 | External Wastegate |  |
| No Extra Cost | T3 | V-Band GT 3" | .63/.82/1.06 | External Wastegate |  |
| No Extra Cost | Divided T3 | V-Band | .78 | External Wastegate |  |
| No Extra Cost | T3 | 5 Bolt | .63/.82/1.06 | Internal Wastegate |  |
| No Extra Cost | T3 | 4 or 5 Bolt | .63/.82 | External Wastegate |  |
| No Extra Cost | K24/K26 | 4 Bolt | .63/.82 | External Wastegate |  |
| $100.00 Extra | Tial Stainless Steel V-Band | V-Band | .63/.82/1.06 | External Wastegate |  |
| No Extra Cost | T25 | T31 V-Band | .63/.82 | External Wastegate |  |
| No Extra Cost | T25 | 5 Bolt | .72 | External Wastegate |  |
| No Extra Cost | Undivided T4 | V-Band | 1.06 | External Wastegate |  |
| No Extra Cost | Divided T3 | V-Band | .82/1.06 | External Wastegate |  |
| No Extra Cost | T3 | Cosworth 3-Bolt | .72 | Internal Wastegate |  |
| $250.00 Extra | Divided T3 | GT V-Band | .61/.83/1.01 | External Wastegate/Ni-Resist |  |
| $250.00 Extra | Undivided V-Band | V-Band | .61/.83/1.01 | External Wastegate/Ni-Resist |  |
| $250.00 Extra | Divided V-Band | V-Band | .61/.83/1.01 | External Wastegate/Ni-Resist |  |
More Information
| Part Number | 714568-5002S, 714568-5003S |
|---|---|
| Part Includes |
|
| Part Brand | Garrett |
| Type of Part | GT Ball Bearing |
| Horsepower Gains | 600 HP |
| Length | 14.0 |
| Width | 12.0 |
| Height | 10.0 |
| Weight | 35.000000 |
