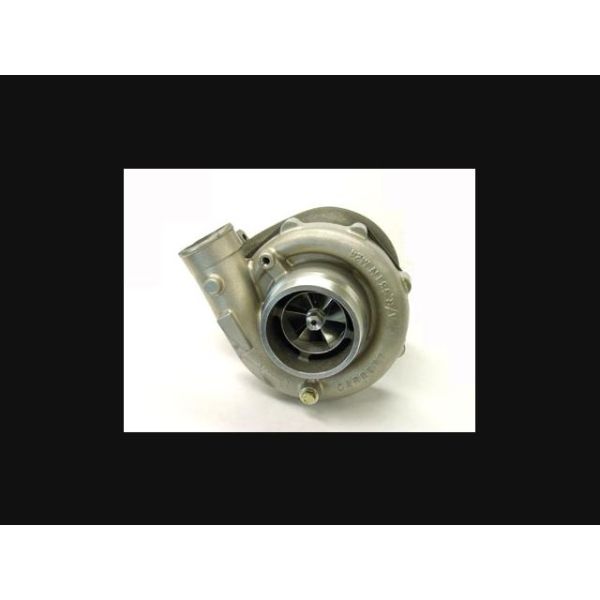

Garrett GT4088R (aka GT40R) Ball Bearing Turbo
Found it for less but value our service?
Details
Garrett GT4088R (aka GT40R) Ball Bearing Turbo
Dual Ball Bearing GT40R Turbo assembly. T4 style inlet flange with 3" V-BAND exit. Now available in T3 Undivided Entry with option to modify to V-band Entry. Please choose Turbine Housing Style and A/R.Large style compressor housing with 4.00" inlet and 2.50"outlet. Hi-HP 6 Cyl applications good up 700HP+ with great top end power.
Turbine:
-Wheel: 77mm w/ 78trim
-T4 Housing: .85, .95, 1.06, or 1.19 A/R
-T3 Housing: .89, .99, or 1.11 A/R
Compressor:
-Wheel: 88mm w/ 52 trim
-Housing: .58 ar
Applicable Garrett Part Numbers: 751470-5001S, 751470-5002S, 751470-5003S, 751470-5004S, 751450-5009S, 751470-0001, 751470-0002, 751470-0003, 751470-0004, 751450-5009
Normally In Stock, Shipping Daily!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
More Information
| Part Number | 751470-5001S, 751470-1 |
|---|---|
| Part Includes |
|
| Brand | Garrett |
| Type of Part | GT Ball Bearing |
| Horsepower Gains | 700+ HP |
| Length | 16.0 |
| Width | 14.0 |
| Height | 14.0 |
| Weight | 40.000000 |
Reviews
Fitment
Garrett GT4088R (aka GT40R) Ball Bearing Turbo
Dual Ball Bearing GT40R Turbo assembly. T4 style inlet flange with 3" V-BAND exit. Now available in T3 Undivided Entry with option to modify to V-band Entry. Please choose Turbine Housing Style and A/R.Large style compressor housing with 4.00" inlet and 2.50"outlet. Hi-HP 6 Cyl applications good up 700HP+ with great top end power.
Turbine:
-Wheel: 77mm w/ 78trim
-T4 Housing: .85, .95, 1.06, or 1.19 A/R
-T3 Housing: .89, .99, or 1.11 A/R
Compressor:
-Wheel: 88mm w/ 52 trim
-Housing: .58 ar
Applicable Garrett Part Numbers: 751470-5001S, 751470-5002S, 751470-5003S, 751470-5004S, 751450-5009S, 751470-0001, 751470-0002, 751470-0003, 751470-0004, 751450-5009
Normally In Stock, Shipping Daily!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
