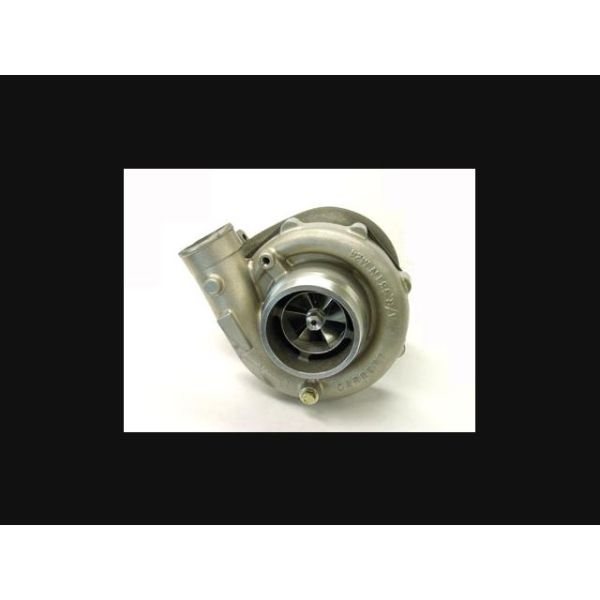

Garrett GT4094R (aka GT40R-42R Hybrid) Ball Bearing Turbo
Garrett's latest Dual Ball Bearing GT4094R Turbo assembly. T4 style divided inlet flange with 3.00" V-BAND exit. Large style compressor housing with 4.00" inlet and 2.50"outlet. Great upgrade path (direct fit) for a GT4088R application or any new high HP application that desires the compact package. Good for up 850HP with great top end power and best spoolup for the power range.
Garrett GT4094R (94mm/ 52 trim) dual ball bearing turbocharger with a .85, .95, 1.06, 1.19 A/R T4 divided turbine housing options. Capable of approximately 850 HP!
Product Features:
Dual ball bearing, oil & water-cooled CHRA
Free float, non-wastegated turbine housing
Ideal for applications that cannot accomodate the GT4294R but need more flow than the GT4088R
Outline interchangeable with the GT4088R
Ported shroud compressor housing to increase surge resistance
Product Specification:
- Turbine Wheel: 77mm
- Compressor Wheel Inducer: 67.8mm
- Compressor Wheel Exducer: 94.0mm
- Compressor Trim: 52
Applicable Garrett P/N's:
751470-19
751470-20
751470-21
751470-22
Normally In Stock, Shipping Daily!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
More Information
Part Number | 751470-19 |
---|---|
Part Includes |
|
Brand | Garrett |
Type of Part | GT Ball Bearing |
Horsepower Gains | 850 HP |
Length | 16.0 |
Width | 14.0 |
Height | 14.0 |
Weight | 60.000000 |
