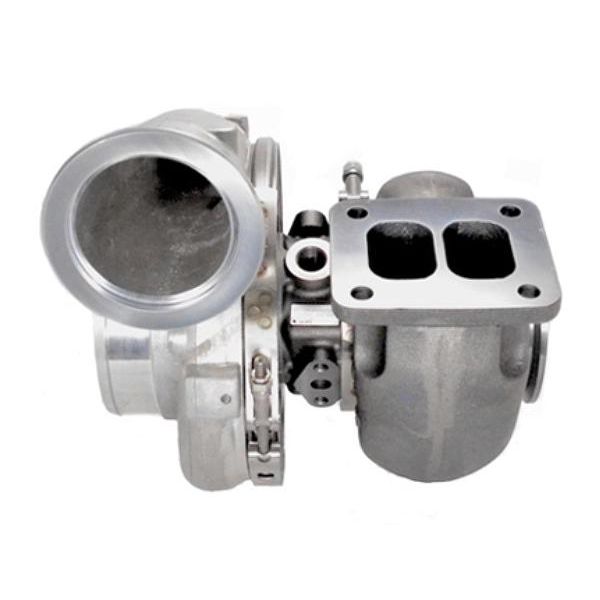

Garrett GT4294R-GT4202R (aka GT42R-GT42RS) Ball Bearing Turbo
Garrett dual ball bearing GT4294R (aka GT42R) and GT4202R (aka GT42RS) turbochargers. The GT4294R (GT42R) is capable of 850hp and the GT4202R (GT42RS) is capable of 1,000hp.
Available in T4 (divided or undivided), T6 divided, or V-band Inlet turbine housings.
PRODUCT SPECIFICATIONS:
Compressor Wheel: GT4294R: 94mm w/ 56 trim (70.3mm inducer) GT4202R: 102mm w/ 53 trim (74.7mm inducer)
Compressor Housing: .60 A/R
Turbine Wheel: 82mm w/84 trim (75.1mm exducer)
TURBINE HOUSING OPTIONS:
T4 Divided Inlet and 4" V-Band Outlet: 1.01, 1.15, 1.28, or 1.44 A/R
*The 1.01ar T4 is NOT Garrett Brand, they do not make it anymore, downpipe flange will need to be adjusted
T6 Divided Inlet and 5" V-Band Outlet: 1.01 or 1.15 A/R
T4 Undivided Inlet and 4" V-Band Outlet: 1.15, 1.28, or 1.44 A/R
V-Band Inlet and 4" V-Band Outlet: 1.15, 1.28, or 1.44 A/R
TiAL V-Band Inlet and Outlet (+$400 additional): 1.02, 1.16, or 1.30 A/R
Applicable Garrett Part Numbers: 774595-5, 451888-5011S (GT4202R), 451888-5009S (GT4294R)
Normally In Stock, Shipping Daily!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
More Information
| Part Number | 774595-5, 451888-5011S, 451888-5009S |
|---|---|
| Brand | Garrett |
| Type of Part | GT Ball Bearing |
| Horsepower Gains | 850-1000 HP |
| Length | 16.0 |
| Width | 14.0 |
| Height | 14.0 |
| Weight | 50.000000 |
