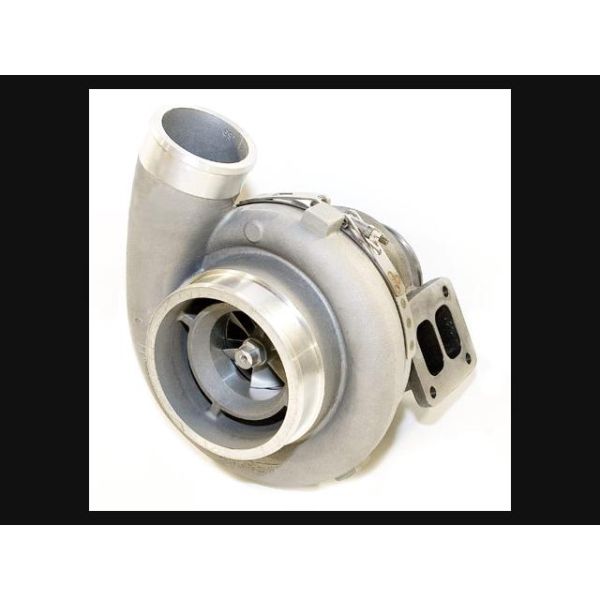

Garrett GT4508R (aka GT45R) Ball Bearing Turbo
Found it for less but value our service?
Details
Garrett GT4508R (aka GT45R) Ball Bearing Turbo
Ball Bearing Garrett GT4508R (aka GT45R) Turbo. Capable of approximately 1200HP! Compressor wheel diameter is 108mm exd. / 80.8mm ind. (56trim) Compressor housing is .69 A/R has a 6" inlet and 3.5" outlet slip on connection. Turbine housing uses a T4 divided inlet and 4" V-band outlet.
TURBINE:
-Wheel: 87.0mm w/ 85 trim
- T4 Divided Housing Options: 1.01, 1.15, 1.28, 1.44 A/R
- Tial Stainless Steel Options ($395 additional): 1.02, 1.16, 1.30 A/R
COMPRESSOR:
-Wheel: 108.0mm exd./80.8mm ind w/ 56 trim
-Housing: .69 A/R (Optional: Compact GT42R/GT42RS Compressor Housing Available)
APPLICABLE GARRETT PART NUMBERS:
742581-5004S
451888-0028
Normally In Stock, Shipping Daily!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
More Information
| Part Number | 774596-1 |
|---|---|
| Part Includes |
|
| Brand | Garrett |
| Type of Part | GT Ball Bearing |
| Horsepower Gains | 1200 HP |
| Length | 16.0 |
| Width | 14.0 |
| Height | 14.0 |
| Weight | 60.000000 |
Reviews
Fitment
Garrett GT4508R (aka GT45R) Ball Bearing Turbo
Ball Bearing Garrett GT4508R (aka GT45R) Turbo. Capable of approximately 1200HP! Compressor wheel diameter is 108mm exd. / 80.8mm ind. (56trim) Compressor housing is .69 A/R has a 6" inlet and 3.5" outlet slip on connection. Turbine housing uses a T4 divided inlet and 4" V-band outlet.
TURBINE:
-Wheel: 87.0mm w/ 85 trim
- T4 Divided Housing Options: 1.01, 1.15, 1.28, 1.44 A/R
- Tial Stainless Steel Options ($395 additional): 1.02, 1.16, 1.30 A/R
COMPRESSOR:
-Wheel: 108.0mm exd./80.8mm ind w/ 56 trim
-Housing: .69 A/R (Optional: Compact GT42R/GT42RS Compressor Housing Available)
APPLICABLE GARRETT PART NUMBERS:
742581-5004S
451888-0028
Normally In Stock, Shipping Daily!
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
