Garrett GTX2967R Dual Ball Bearing Turbo

SKU:
836041-5001S, 836041-1
Views: 2
Qty

Please complete product configuration
Details

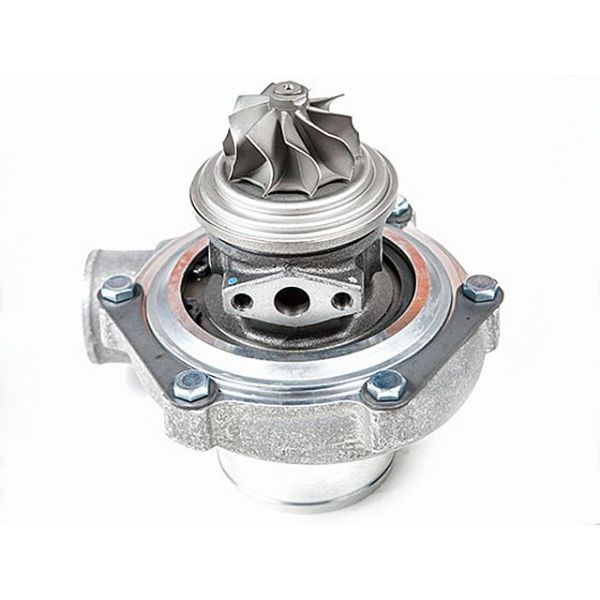

Garrett GTX2967R Dual Ball Bearing Turbo

PRODUCT DESCRIPTION:
New GTX2967R dual ball bearing turbo with ultra high flow compressor and featuring Garrett 10-Blade technology. 500HP potential flow.

**Turbine Housing NOT included and sold separately.

The GTX2967R is available as a direct drop-in replacement to existing GT28 or GTX28 series turbochargers!

PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 49.7mm
* Compressor Wheel Exducer: 67.4mm
* Compressor Wheel Trim: 55
* Turbine Wheel Inducer: 56.5mm
* Turbine Wheel Exducer: 51.8mm
* Turbine Wheel Trim: 84
* Standard compressor housing is GT28 Style with 3" inlet, 2" outlet, and built-in & machined anti-surge.

COMPRESSOR HOUSING OPTIONS:
* GT28 Style with 3" inlet, 2" outlet, and built-in & machined anti-surge. Default / Standard Option
* GT28R Style (aka GT2560R) with 2 Bolt Inlet Flange and 3 Bolt Outlet Flange
* GT25R (aka GT2554R) Compact Frame with 2.3 inch inlet and 3 Bolt Outlet Flange
* Skyline RB26 Twin Style (2 Bolt Inlet Flange and 3 Bolt Outlet Flange)

APPLICATION NOTES:
* Uses same oil and coolant fittings as the standard GT28, GT30, and GTX35 series turbochargers
* Available as a direct drop-in replacement to existing GT28 or GT30 series turbochargers without any modification
* Actuator and bracket sold separately

Applicable Garrett Part Numbers: 836041-5001S, 836041-1, 836013-0001

Normally In Stock, Shipping Daily!

TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.

Turbine Housing Options
Inlet Outlet A/R Type
T25 5 Bolt .64/.86 Internal Wastegate Garrett GT3582R T3 4 Bolt Turbine Housing
T3 4 Bolt .63/.82 External Wastegate Garrett GT3582R T3 4 Bolt Turbine Housing
T3 5 Bolt .63/.82 External Wastegate Garrett GT3582R T3 4 Bolt Turbine Housing
Tial Stainless Steel V-Band V-Band .63/.82 External Wastegate Garrett GT3582R Tial Stainless Steel V-Band Turbine Housing
T25 T31 V-Band .63/.82 External Wastegate Garrett GT3582R T25 V-Band Turbine Housing
T25 5 Bolt .72 External Wastegate Garrett GT3582R T25 5 Bolt External Wastegate Turbine Housing
Undivided V-Band V-Band .61/.83/1.01 External Wastegate/Ni-Resist Garrett GT3582R T3 V-Band GT 3'' Outlet Turbine Housing
More Information
Part Number 836041-5001S, 836041-1
Brand Garrett
Type of Part GTX Series
Engine Fitment 1.8L-3.0L (275HP-500HP)
Length 10.0
Width 12.0
Height 10.0
Weight 30.000000
