Garrett GTX3071R Gen II BLACK TiAL SS VBand 1.06AR
Check out the FULL GTX3071R Gen 2 Line Up Here
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details

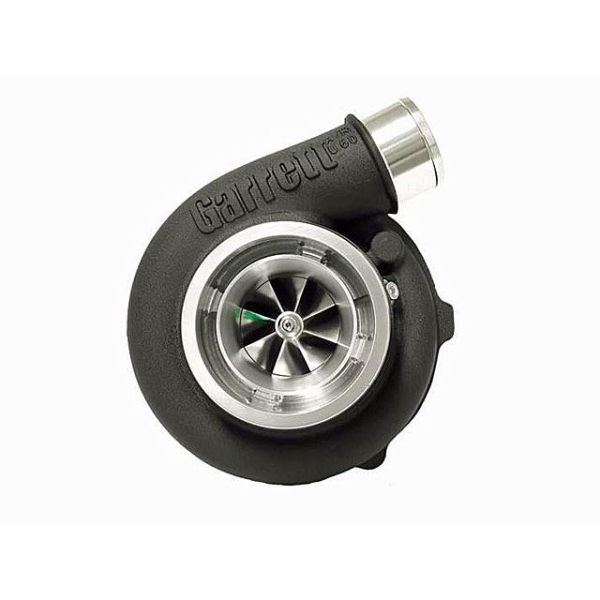

Garrett GTX3071R Gen II BLACK Dual Ball Bearing Turbo - TiAL SS VBand 1.06AR
Product Description:
Black Garrett GEN II GTX3071R dual ball bearing turbocharger with a 1.06 A/R stainless steel TiAL v-Band inlet and v-band 3" Outlet turbine housing. Advanced GEN2 billet compressor wheel capable of 650HP!
Product Features:
Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
Forged billet aluminum compressor wheel
Dual ball bearing CHRA rotating assembly
Product Specifications:
Compressor Wheel Inducer: 54mm
Compressor Wheel Exducer: 71mm
Compressor Wheel Trim: 58
Compressor Housing A/R: 0.60
Turbine Wheel Inducer: 60mm
Turbine Wheel Exducer: 55mm
Turbine Wheel Trim: 84
More Information
| Part Number | GRT-TBO-J90 |
|---|---|
| Part Brand | Garrett |
| Type of Part | GTX Gen II BLACK Series |
| Length | 12.0 |
| Width | 12.0 |
| Height | 12.0 |
| Weight | 30.000000 |
Reviews
Fitment
Garrett GTX3071R Gen II BLACK Dual Ball Bearing Turbo - TiAL SS VBand 1.06AR
Product Description:
Black Garrett GEN II GTX3071R dual ball bearing turbocharger with a 1.06 A/R stainless steel TiAL v-Band inlet and v-band 3" Outlet turbine housing. Advanced GEN2 billet compressor wheel capable of 650HP!
Product Features:
Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
Forged billet aluminum compressor wheel
Dual ball bearing CHRA rotating assembly
Product Specifications:
Compressor Wheel Inducer: 54mm
Compressor Wheel Exducer: 71mm
Compressor Wheel Trim: 58
Compressor Housing A/R: 0.60
Turbine Wheel Inducer: 60mm
Turbine Wheel Exducer: 55mm
Turbine Wheel Trim: 84
