Garrett GTX3576R GEN II Dual Ball Bearing Turbo
TAGS: Garrett GTX Gen II Series, GTX3576R Gen 2, 750HP, 851154-5003S, 856801-5058S, 856801-5059S, 856801-5060S
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details

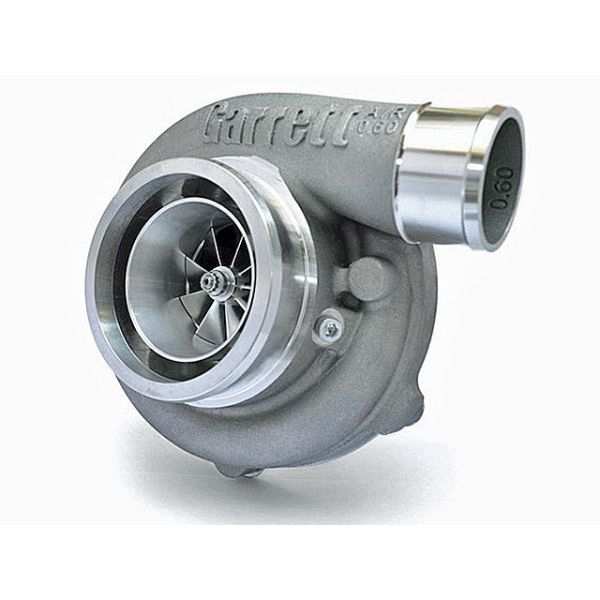

Garrett GTX3576R GEN II Dual Ball Bearing Turbo - 851154-5003S
PRODUCT DESCRIPTION:
Garrett GEN II GTX3576R dual ball bearing turbocharger (turbine housing sold separately). Advanced GEN II (Gen2) billet compressor wheel capable of 750HP! The Garrett GEN II (Gen2) GTX3576R fits turbine housings for Garrett GT35 and GTX35 series turbochargers with a 68mm inducer and 84 trim turbine wheel. Normally In Stock, Shipping Daily!
APPLICABLE GARRETT PART#s:
•851154-5003S, 856801-5058S, 856801-5059S, 856801-5060S
PRODUCT FEATURES:
•Advanced aerodynamics & ultra high flow Garrett GTX GEN II (Gen2) compressor wheel
•Forged billet aluminum compressor wheel
•Dual ball bearing CHRA rotating assembly
•Built in turbo shaft speed port. Just add sensor and go!
PRODUCT SPECIFICATIONS:
•Compressor Wheel Inducer: 58mm
•Compressor Wheel Exducer: 76mm
•Compressor Wheel Trim: 58
•Compressor Housing A/R: 0.60
•Turbine Wheel Inducer: 68mm
•Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
| Turbine Housing Options | |||||
| Inlet | Outlet | A/R | Type | ||
| T3 | 4 Bolt GT 3" | .63/.82/1.06 | External Wastegate |  |
|
| T3 | V-Band GT 3" | .63/.82/1.06 | External Wastegate |  |
|
| Divided T3 | V-Band | .78 | External Wastegate |  |
|
| T3 | 5 Bolt | .63/.82/1.06 | Internal Wastegate |  |
|
| T3 | 4 or 5 Bolt | .63/.82 | External Wastegate |  |
|
| K24/K26 | 4 Bolt | .63/.82 | External Wastegate |  |
|
| Tial Stainless Steel V-Band | V-Band | .63/.82/1.03 | External Wastegate |  |
|
| T25 | T31 V-Band | .63/.82 | External Wastegate |  |
|
| T25 | 5 Bolt | .72 | External Wastegate |  |
|
| Undivided T4 | V-Band | 1.06 | External Wastegate |  |
|
| Divided T3 | V-Band | .82/1.06 | External Wastegate |  |
|
| T3 | Cosworth 3-Bolt | .72 | Internal Wastegate |  |
|
| Divided T3 | GT V-Band | .61/.83/1.01 | External Wastegate/Ni-Resist |  |
|
| Undivided V-Band | V-Band | .61/1.01 | External Wastegate/Ni-Resist |  |
|
| Undivided V-Band | V-Band | .83 | External Wastegate/Ni-Resist | |
|
| Divided V-Band | V-Band | .61/.83/1.01 | External Wastegate/Ni-Resist |  |
|
More Information
| Part Number | 851154-5003S |
|---|---|
| Part Brand | Garrett |
| Type of Part | GTX Gen II Series |
| Engine Fitment | 2.0L-4.5L (400HP-750HP) |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 22.000000 |
