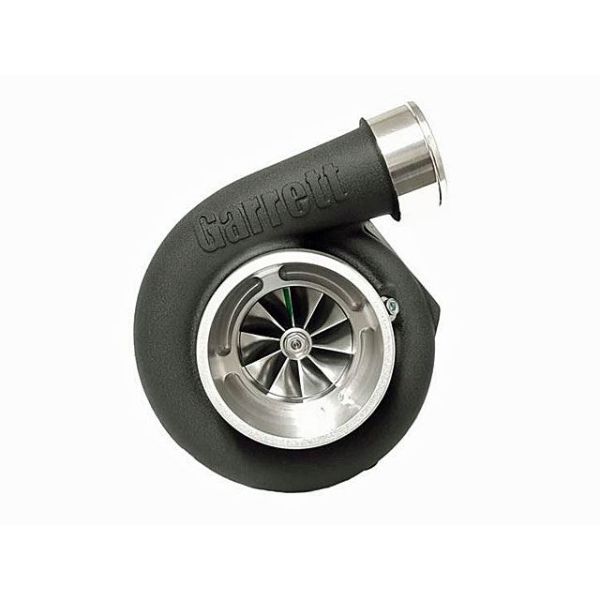

Garrett GTX3582R Gen II BLACK Vband 0.61AR
Check out the FULL GTX3582R Gen 2 Line Up Here
Price Match Guarantee
Found it for less but value our service?
Have a Question About This Product
Found it for less but value our service?
Details
Garrett GTX3582R Gen II BLACK Dual Ball Bearing Turbo - Vband 0.61AR
Product Description:
Black Garrett Gen II GTX3582R dual ball bearing turbo with .61 A/R Garrett undivided v-band turbine housing with 3" v-band exit. 850HP potential flow.
Product Specifications:
Compressor Wheel Inducer: 66mm
Compressor Wheel Exducer: 82mm
Compressor Wheel Trim: 64
Compressor Housing A/R: 0.70, T04S Frame: 4" in / 2.5" out
Turbine Wheel Inducer: 68mm
Turbine Wheel Exducer: 62mm
Turbine Wheel Trim: 84
More Information
| Part Number | GRT-TBO-J91 |
|---|---|
| Part Brand | Garrett |
| Type of Part | GTX Gen II BLACK Series |
| Length | 12.0 |
| Width | 12.0 |
| Height | 12.0 |
| Weight | 30.000000 |
