Garrett GTX3584RS GEN II Dual Ball Bearing Turbo
TAGS: Garrett GTX Gen II Series, GTX3584RS Gen 2, 1,000HP, 846098-5001S, 846098-5002S
Found it for less but value our service?
Details

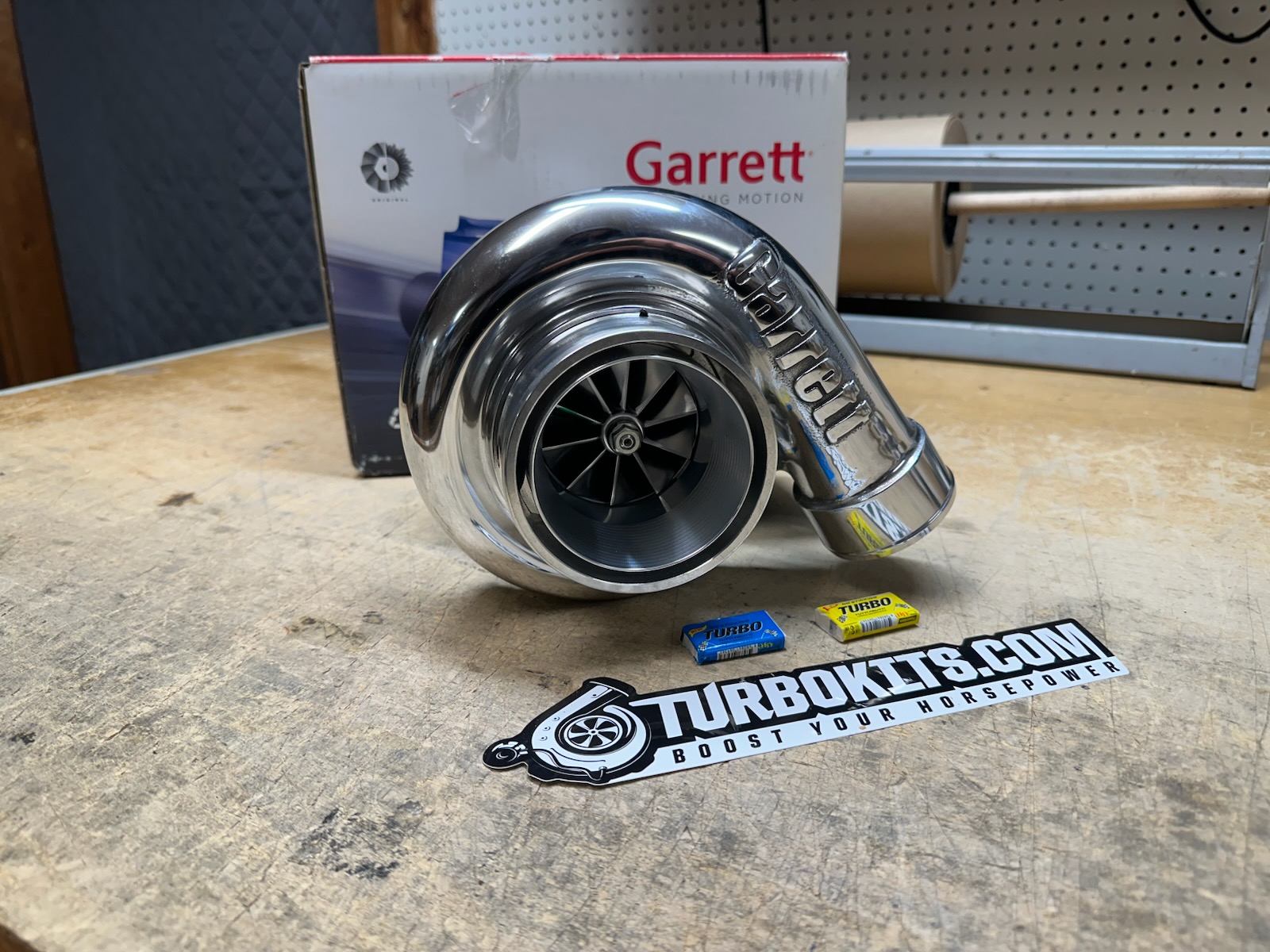

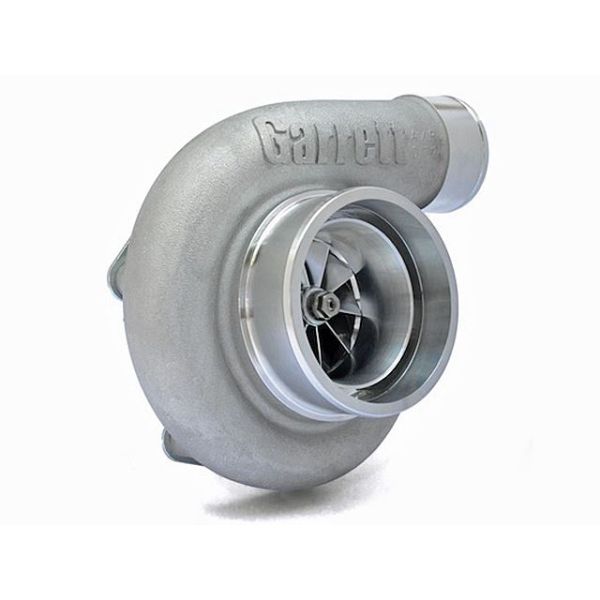

Garrett GTX3584RS GEN II Dual Ball Bearing Turbo - 846098-5001S
PRODUCT DESCRIPTION:
Garrett GEN II GTX3584RS dual ball bearing turbocharger with hose bead compressor outlet housing (turbine housing sold separately). The Garrett GTX3584RS (Gen 2) combines an advanced aerodynamic GEN2 billet compressor wheel and ultra high flow "RS" turbine wheel within compact design housings to support 1,000HP! Normally In Stock, Shipping Daily!
**Hose bead compressor housing outlet version**
APPLICABLE GARRETT PART#s:
•846098-5001S
•846098-5002S
PRODUCT FEATURES:
•Advanced aerodynamics Garrett GTX GEN II (Gen 2) billet aluminum compressor wheel
•Ultra high flow "RS" blade profile turbine wheel
•Dual ball bearing CHRA rotating assembly
•Compact package capable of 1,000HP
•Built in turbo shaft speed port. Just add sensor and go!
PRODUCT SPECIFICATIONS:
•Compressor Wheel Inducer: 67mm
•Compressor Wheel Exducer: 84mm
•Compressor Wheel Trim: 64
•Compressor Housing A/R: 0.72
•Turbine Wheel Inducer: 68mm
•Turbine Wheel Exducer: 62mm
• Turbine Wheel Trim: 84
TurboKits.com only sells genuine Garrett turbochargers. Don’t fall victim to look alike or knockoff “Garrett” turbos from shady online retailers or auction sites. Rest assured that when you buy from TurboKits.com you are getting a quality, brand name turbocharger with the warranty and technical support to back it up.
More Information
| Part Number | 846098-5001S, 846098-5002S |
|---|---|
| Brand | Garrett |
| Type of Part | GTX Gen II Series |
| Engine Fitment | 2.0L-5.5L (550HP-1000HP) |
| Length | 15 |
| Width | 15 |
| Height | 15 |
| Weight | 22.000000 |
