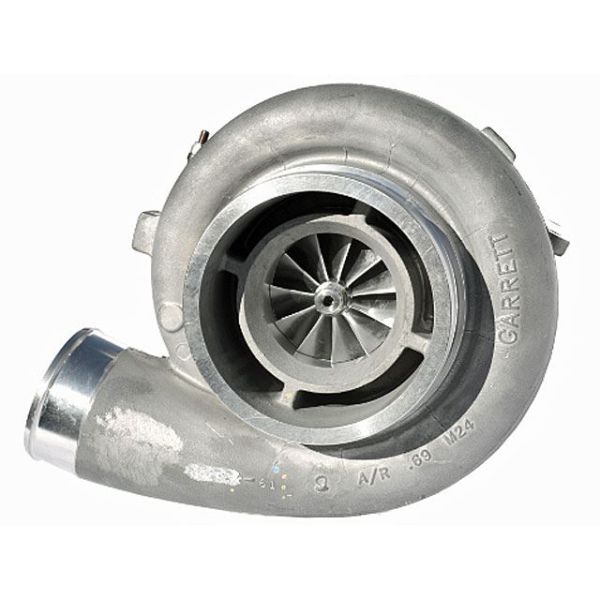

Garrett GTX4708R Dual Ball Bearing Turbo
PRODUCT DESCRIPTION:
- Race class designed GTX4708R
- Special 55 Trim, 79.8 mm inducer and 108.0 mm exducer with NO TURBINE HOUSING
- This turbo is built for class requirements that are limited to a 80mm compressor wheel
- Turbine side of this turbo will mate to any GT47 series turbine housing
- Same compressor housing style as GT47
- Externally interchangeable with an existing GT47 turbo setup
** Turbine Housing sold separately **
PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 79.8mm
* Compressor Wheel Exducer: 108.0mm
* Compressor Wheel Trim: 55
* Turbine Wheel Inducer: 92.7mm
* Turbine Wheel Exducer: 84mm
* Turbine Wheel Trim: 82
APPLICABLE GARRETT PART NUMBERS:
* 804878-2
* 804878-5002
* 804878-5002S
CLASS LEGAL IN THE FOLLOWING RACE ORGANIZATION CATEGORIES:
* Duck X Productions: Outlaw 275 Class (Small Block)
* Duck X Productions: Leaf-Spring Shootout Class (Big Block Twin Turbo Setup)
* Import Face-Off: Forced Induction Pro Class (4 Cylinder)
* Import Revolution: Street Fighter Class (6 Cylinder)
* MIR - World Cup Finals: Street Fighter Class - Domestic (8 Cylinder)
* MIR - World Cup Finals: Street Fighter Class - Import (2 rotor & 6 Cylinder)
* MIR - World Cup Finals: Super Street Class - Import (2 rotor)
* NMCA - Outlaw 8.5 Class
** Please review class regulations for update rules and specific requirements **
More Information
| Part Number | 804878-5002S |
|---|---|
| Part Brand | Garrett |
| Type of Part | GTX Series |
| Length | 10.0 |
| Width | 12.0 |
| Height | 12.0 |
| Weight | 40.000000 |
