TAGS: Garrett PowerMax Stage 1 2.0L Ecoboost Turbo Upgrade, 2013-2018 Focus ST, Escape, Kuga, Fusion, Taurus, MKC, MKT & MKZ, Garrett, 886195-5001S

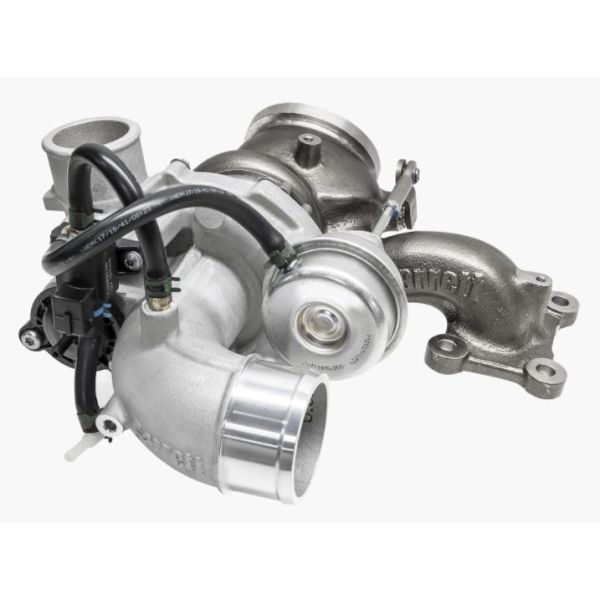

The Garrett PowerMax™ Stage 1 turbocharger upgrade for the 2013 – 2018 2.0L Ford EcoBoost engine platform is engineered to increase engine performance capability while maintaining OEM installation specifications. This direct Garrett drop-in turbocharger provides up to 16% more flow than OEM and will support up to 350 BHP* (260kW). Improvements in compressor efficiency and flow can be attributed to the 52mm fully-machined compressor wheel with advanced aero design. Inconel alloy turbine wheel and stainless steel turbine housings are rated for up to 950° C. This turbocharger kit comes fully assembled, calibrated, and is outline interchangeable with the OE hardware to ensure a perfect fit every time.
|Model||Year||Body & Trim|
|Escape/ Kuga||2014 – 2016||SE, Titanium|
|Focus||2013 – 2018||ST|
|Fusion||2013 – 2016||SE, Titanium|
|Police Sedan||2014 – 2018||Base|
|Taurus||2013 – 2017||Limited, SE, SEL|
|MKC||2015 – 2017||Base, Black Label, Premiere, Reserve, Select|
|MKZ||2013 – 2016||Base, Black Label|
|Interchangeable with OE PN||CJ5E-6K682-C | CJ5E-6K682-E | CJ5E-6K682-F
CJ5Z-6K682-C | CJ5Z-6K682-E | CJ5Z-6K682-F
|Model||Focus ST | Escape / Kuga | Fusion | Taurus | MKC | MKT | MKZ|
|Year||2013 – 2018|
WARNING: The maximum allowable turbocharger speed is 214.9 krpm. The use of this product above 214.9krpm is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0001 (includes sensor and gauge), and 781328-0002 (includes speed sensor). Speed sensors sold separately.
*Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The target power has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power.
|Type of Part||Turbo Upgrades|
|Engine Fitment||2.0L Ecoboost|
