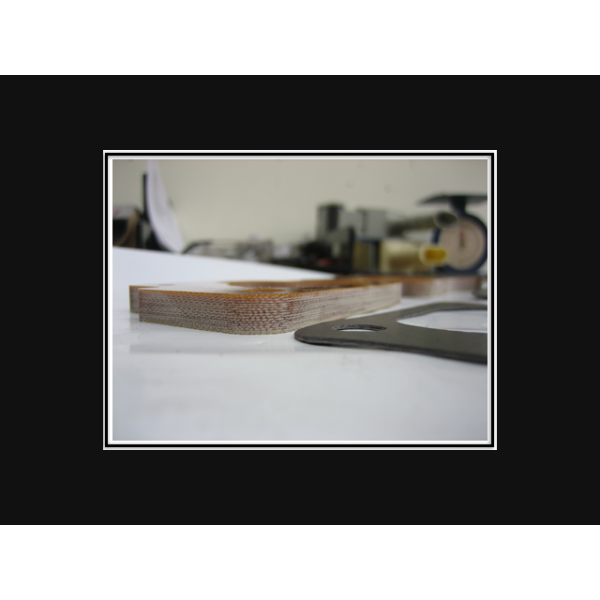

GrimmSpeed Phenolic Thermal Intake Spacer for 2010-2016 Hyundai Genesis Coupe V6 3.8L - 083001, 071003
Do you know what your intake manifold sits on? A superheated engine. If you don't know already, the cooler your intake air is the more HP your car will achieve. We present you the answer to this age old problem, raising the intake manifold off the engine with GrimmSpeed's new Phenolic Intake Manifold to Engine Thermal Spacer.
Phenolic spacers have been used for years by many other specialized automotive companies, but this is very new technology to the Hyundai world.
- Greatly reduces the transfer of heat from engine to intake manifold thus reducing heat soak.
- True Phenolic material, not cutting board material like others.
- The cooler your intake temperature is the denser the air is which leads to more power
- For every 5 degree reduction in temperature, increases power by 1%.
- The cooler and denser the intake air that the engine sucks in, increases the amount of air that can be mixed with fuel thus increasing efficiency.
- Direct bolt-on.
- Made in USA
When running the oem gasket only, your intake manifold gets very hot to the touch, enough to burn your hand. When the oem gasket is replaced with our Phenolic Spacer, your hand can be placed on the intake manifold without any issues.
We have installed both with and without OEM Hyundai Gaskets and have had no issues with either way. We do recommend using 2 sets of oem gaskets however, one on both sides of the spacer.
How it works:
The intake air in your engine travels through the airbox into the aluminum intake manifold. The air exits the intake manifold and goes directly into the engine.
While the intake air is within the intake manifold it picks up alot of heat from the aluminum intake manifold. This added heat reduces air density thus reducing engine power capabilities.
In stock form your engine has a steel gasket between the intake manifold and engine which allows the heat from the engine to quickly transfer into the intake manifold. By replacing this steel gasket with the GrimmSpeed Phenolic Spacer you are greatly reducing the transfer of engine heat into the intake manifold.
Phenolic Spacers are able to withstand 500+ degrees F. Hyundai engines run at around 200 degrees F, so the Phenolic Spacer is well within its max running temperature. GrimmSpeed has tested that it is also safe to run race fuel, E85, and methanol with the Phenolic Spacers.
The Phenolic Spacer will conduct 300-900 times less heat than the oem steel gasket.
GrimmSpeed Lifetime Warranty Policy! GrimmSpeed branded products are warranted to the original owner against manufacturing defects in materials and workmanship for the lifetime of the product.
More Information
| Part Number | 083001, 071003 |
|---|---|
| Part Brand | GrimmSpeed |
| Type of Part | Engine |
| Engine Fitment | 3.8L |
| Length | 18 |
| Width | 4 |
| Height | 4 |
| Weight | 1.000000 |
