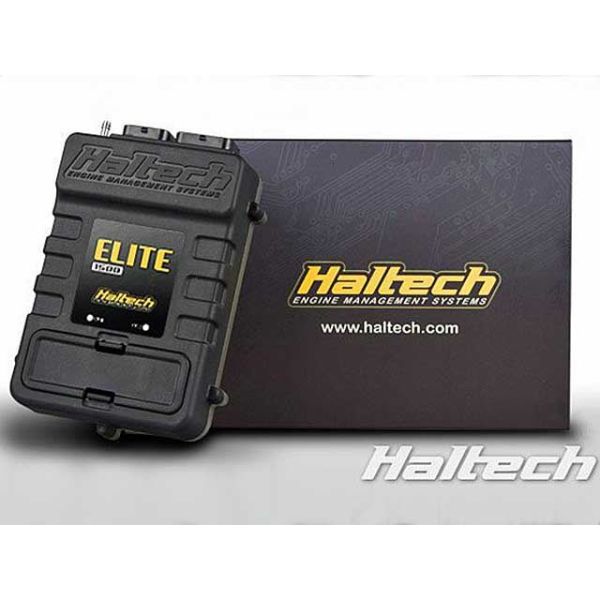

Haltech Elite 1500 Stand Alone ECU - HT-150900
The new Haltech Elite Series ECUs take the art of engine management to a brand new level. With a brand new, waterproof case, drive-by-wire, exhaust cam and knock control the Elite Series ECUs provide cutting edge technology to tuners and performance enthusiasts world-wide.
Elite 1500 Features:
• Waterproof Case (IP67)
• 4 x Fuel Injection Outputs
• 4 x Ignition Outputs
• 20 x Digital Outputs
• 10 x Analogue Voltage Inputs
• USB Laptop Communications up to 1 MB/s
• 6 x Engine Position Inputs with extensive trigger type support
• Programmable Injector Peak and Hold Currents
• OBDII Capable – Set and clear diagnostic trouble codes, view live engine data
• ESP Calibration Software – Intuitive and easy to use
• Dual CAN Bus communication for OEM and Haltech CAN Expansion
• User definable 5D Tuning – Tune by gear, Cam angle or any channel for ultimate flexibility
• Variable cam control – Independently control up to 4 camshafts
• Auto tune capabilities – Short and Long term fuel, ignition, boost and idle control learning
• Single Channel Knock Control – with high speed digital filtering for accurate detection
• Multi-fuel Support – Support for Petrol (Gasoline), LPG, Methanol and Ethanol
• E85 Flex Fuel Ready – Direct connection to sensor.
• Closed Loop Boost Control – Multiple Modes – Tune by gear, wheel speed or time
• Closed Loop Idle Control – With learning for consistent idle stability
• Closed Loop 02 Control – Dual bank control for precise tuning
• Anti-Lag and Launch Control – Drag and Rally modes
• Data logging – Up to 40 channels of logging. Sampling rates up to 200Hz (5ms)
• Multi Level Engine Protection – Set limits for sensors and protect your engine
** UPGRADED VERSION**
The Elite 1500 Flying Lead Kit includes:
• Elite 1500 ECU
• Premium Universal Wiring Harness Kit
• Moulded 6 circuit Haltech Fuse block
• 4 Relays, USB Software key
• Programming Cable
• Custom mounting plate
More Information
| Part Number | HT-150900 |
|---|---|
| Part Brand | Haltech |
| Type of Part | Engine Management |
| Length | 10.0 |
| Width | 10.0 |
| Height | 10.0 |
| Weight | 15.000000 |
